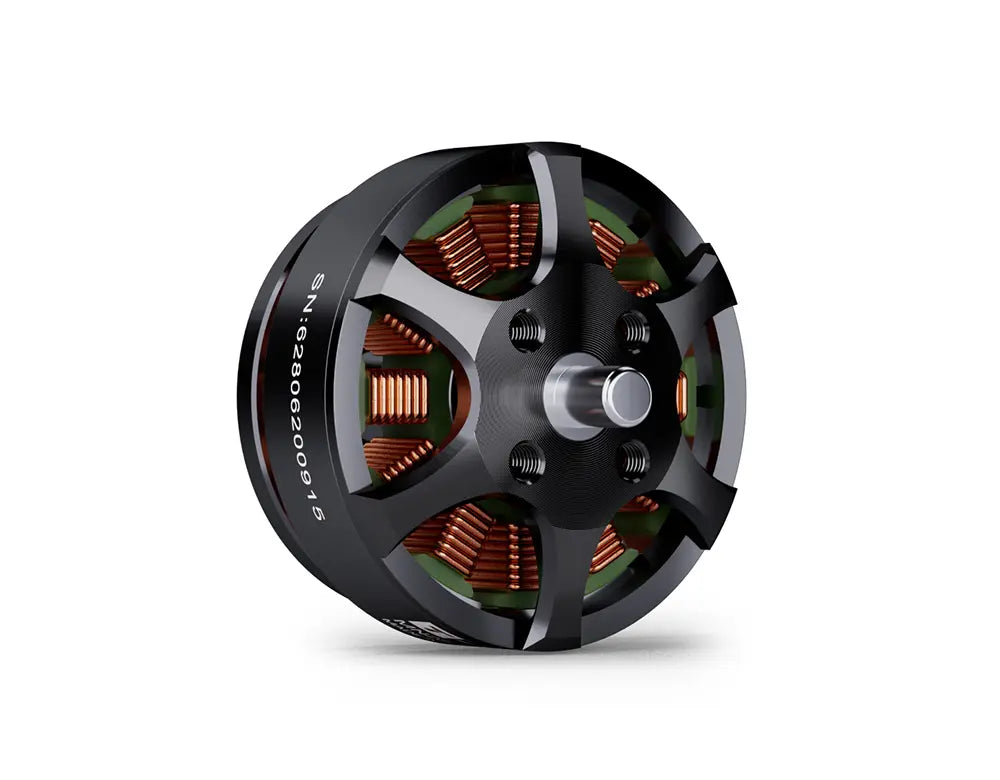

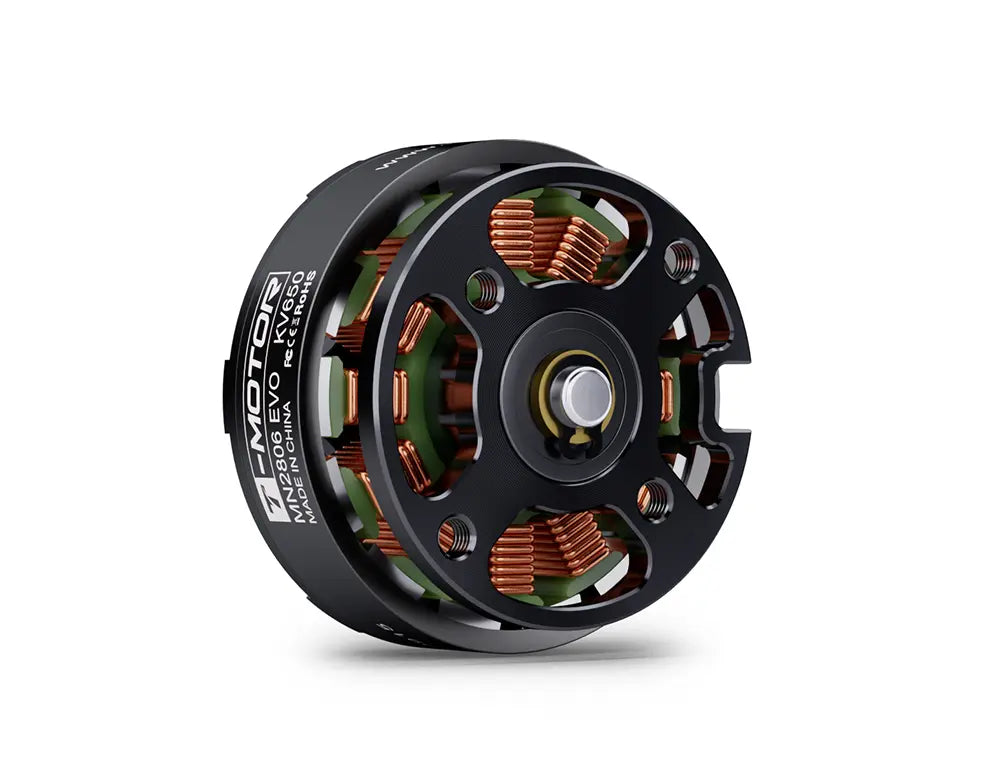

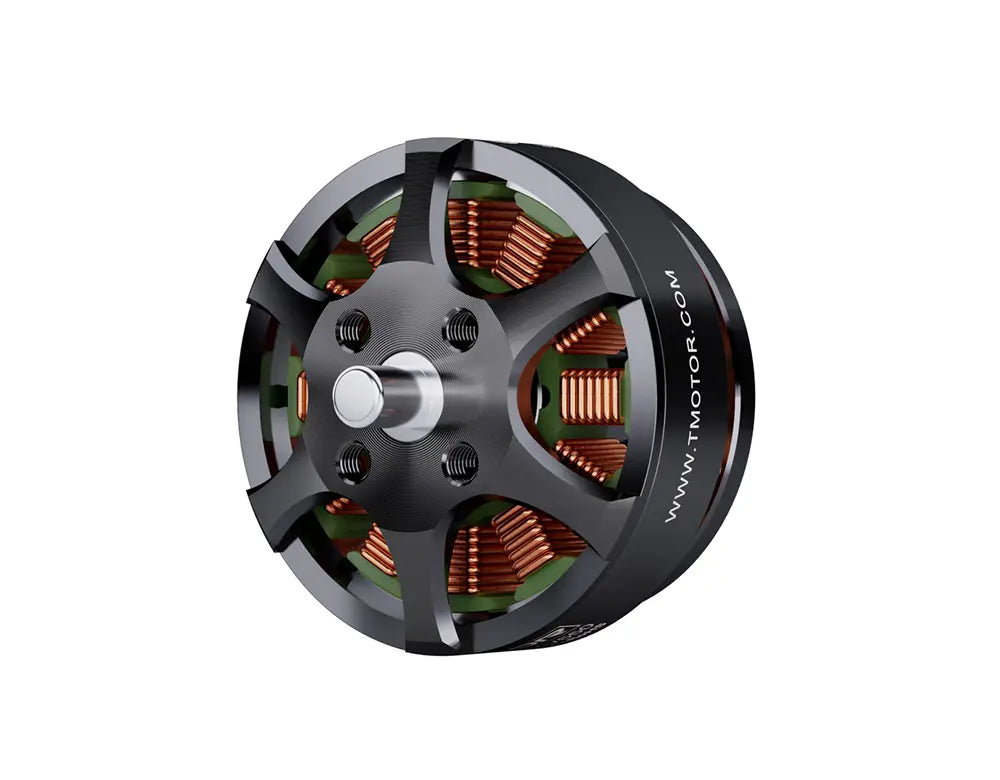

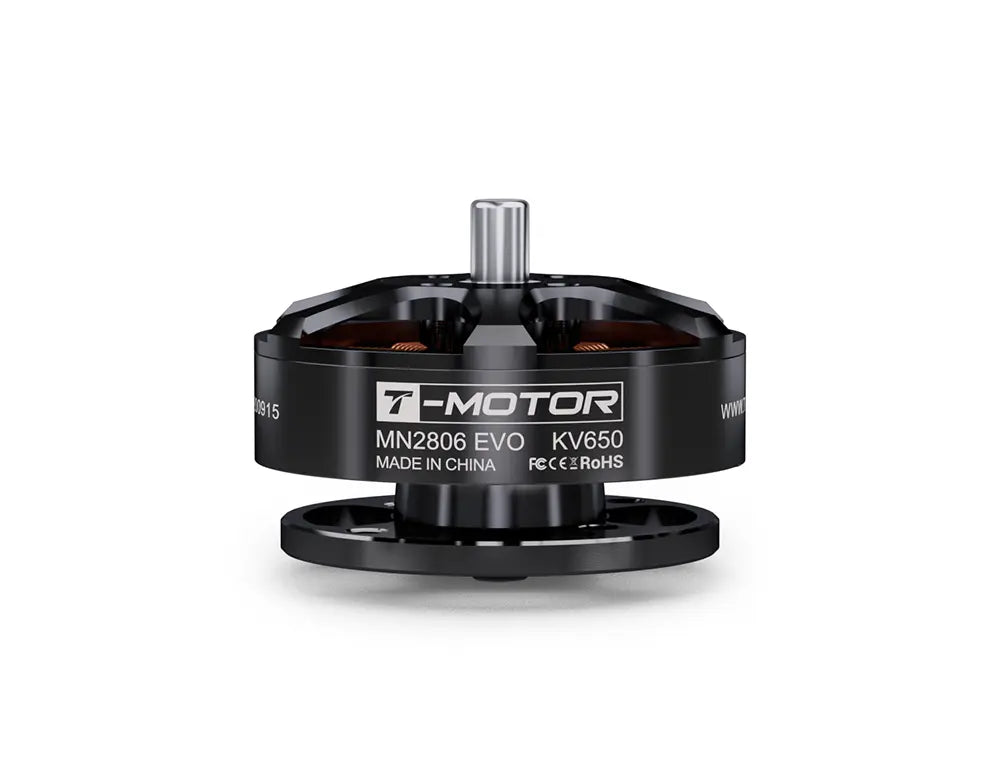

T-MOTOR Antigravity MN2806 EVO

T-Motor has advanced the Antigravity MN2806 to the latest Antigravity MN2806 EVO KV650, featuring arc-shaped magnets that tightly conform to the steel ring, effectively reducing the air gap with the stator. This design enhances the uniformity of magnetic flux distribution, minimises magnetic leakage, and optimises both magnetic field efficiency and motor performance. The enamelled wire has been upgraded to withstand temperatures of up to 220℃, ensuring the motor maintains stability under extreme conditions, including high RPM, heavy loads, and elevated temperatures. This significantly reduces the risk of motor failures and damage due to wire breakage, thereby enhancing reliability and lifespan. The new Antigravity MN2806 EVO KV650 boasts a 16% increase in maximum thrust to 1390g, with an efficiency improvement of over 0.3g/W at similar thrust levels (above 400g).

Highlights

Upgraded with arc-shaped magnets for optimal fit to the steel ring, precisely minimising the stator air gap, optimising magnetic flux distribution, and improving motor efficiency.

High-temperature resistant enamelled wire rated for 220℃, reducing the likelihood of motor failures and enhancing reliability and longevity.

Maximum thrust increased by 16% to 1390g.

Efficiency improvement of over 0.3g/W at similar thrust levels (above 400g).
