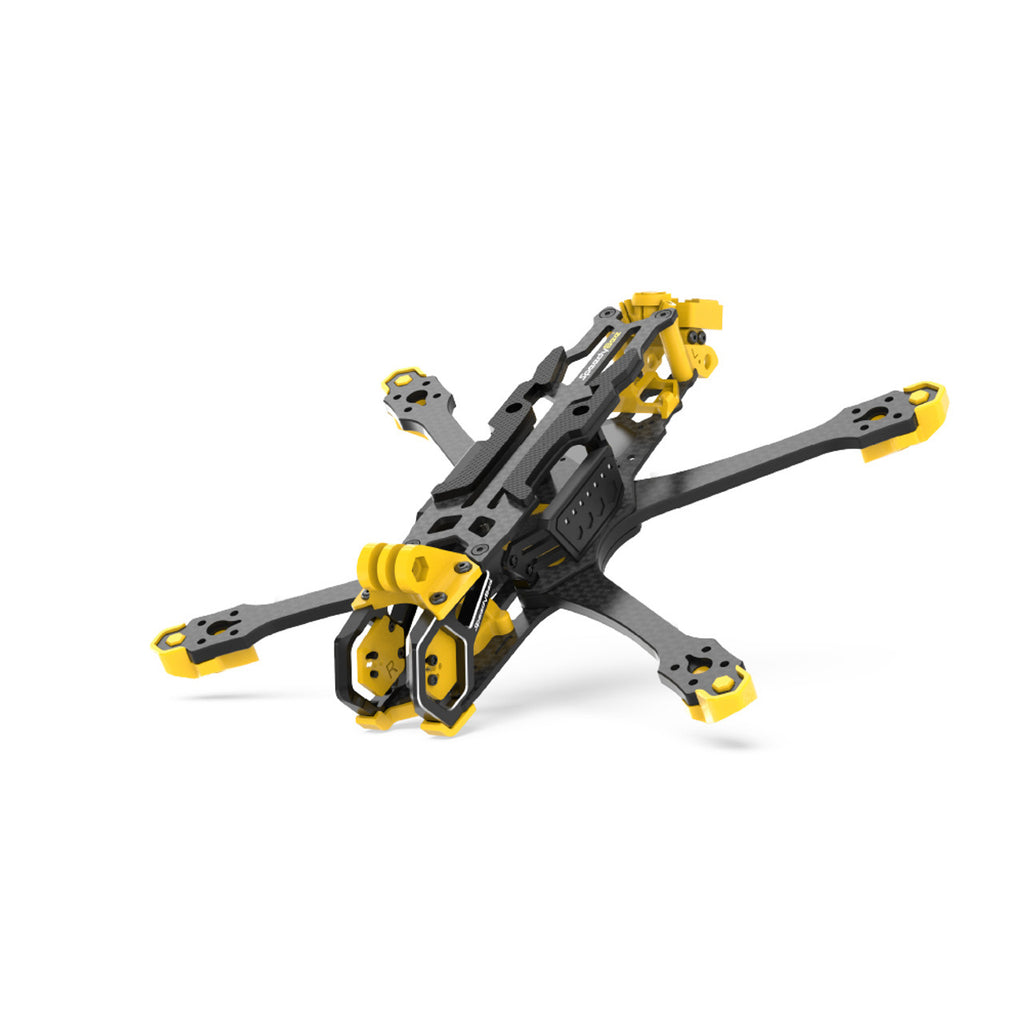

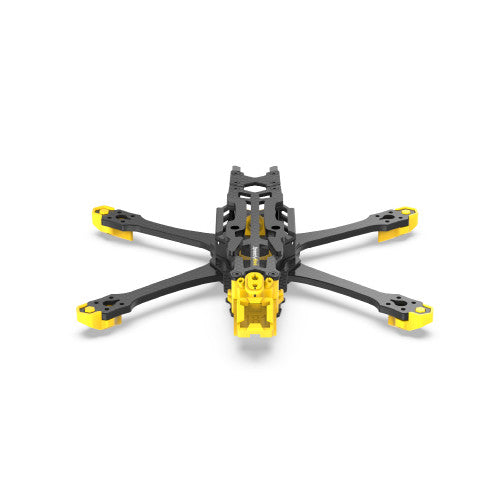

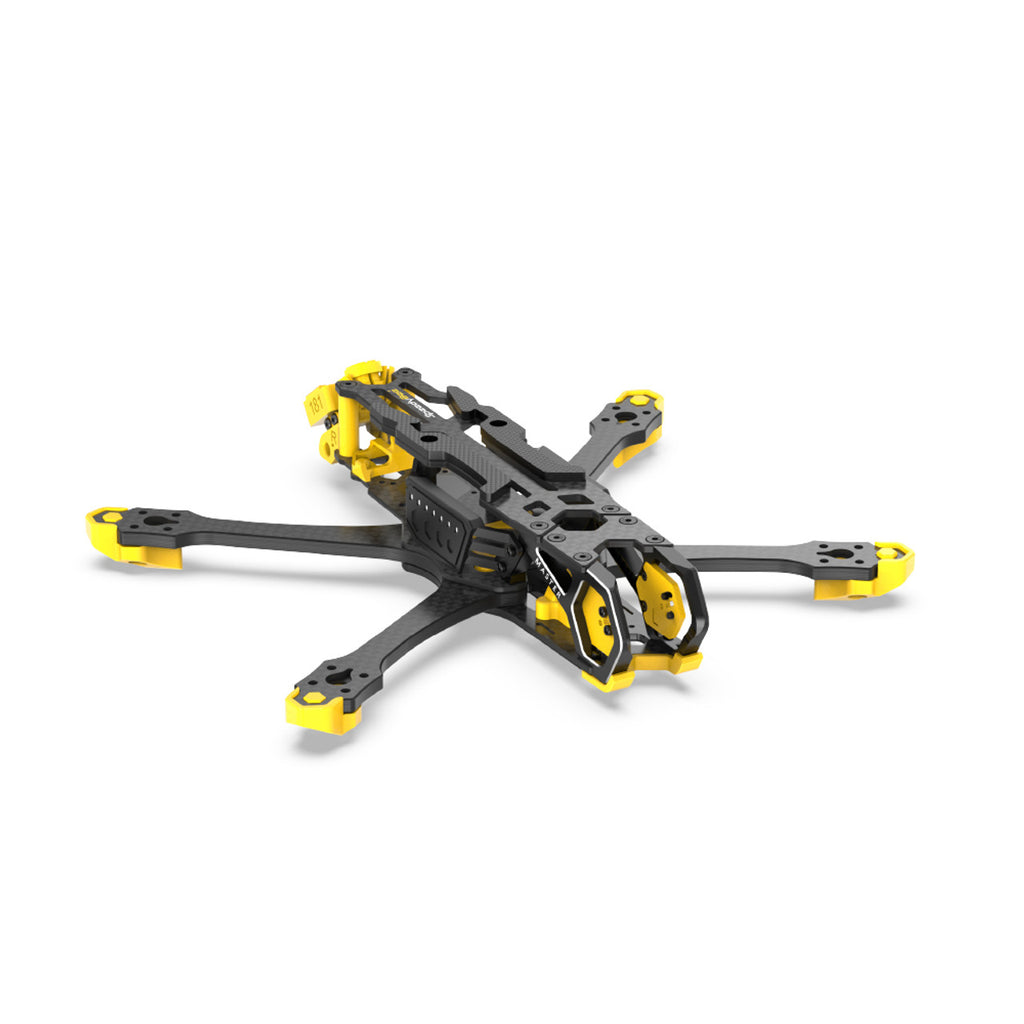

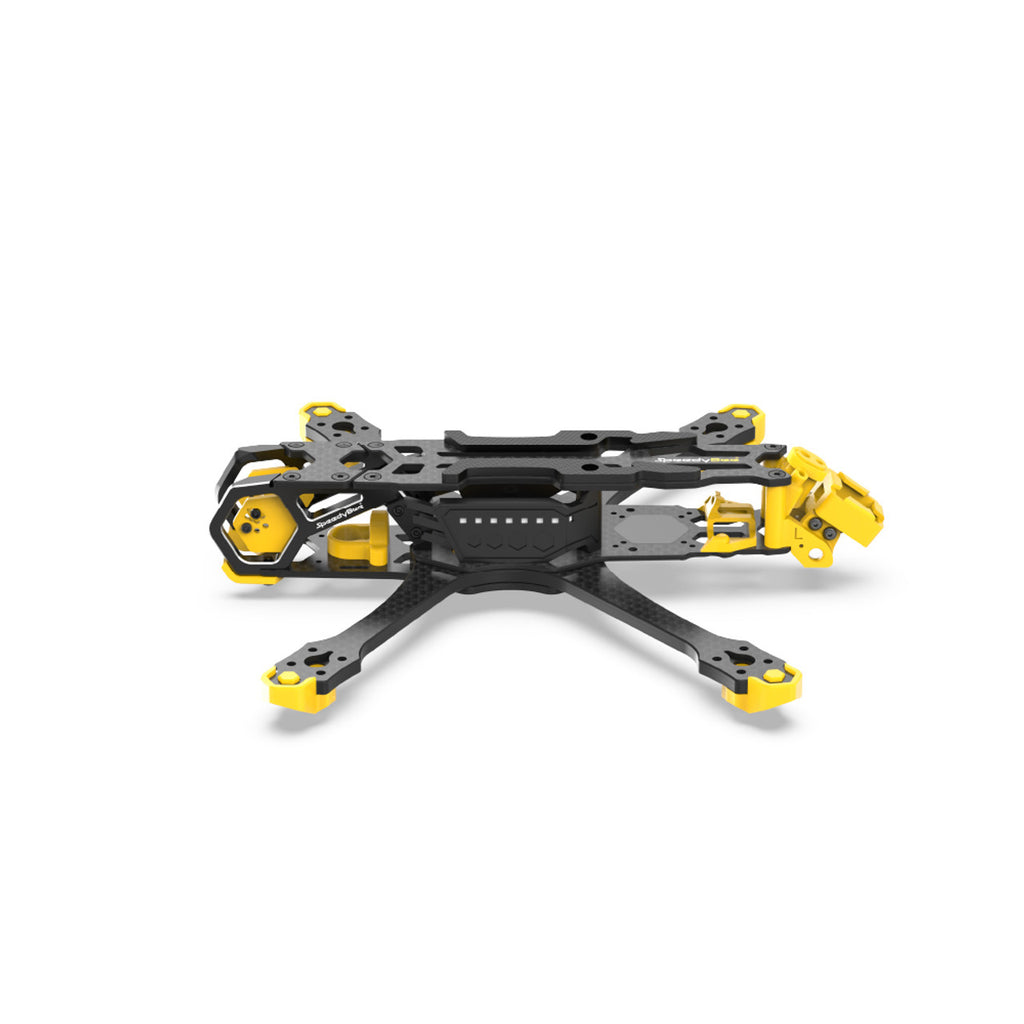

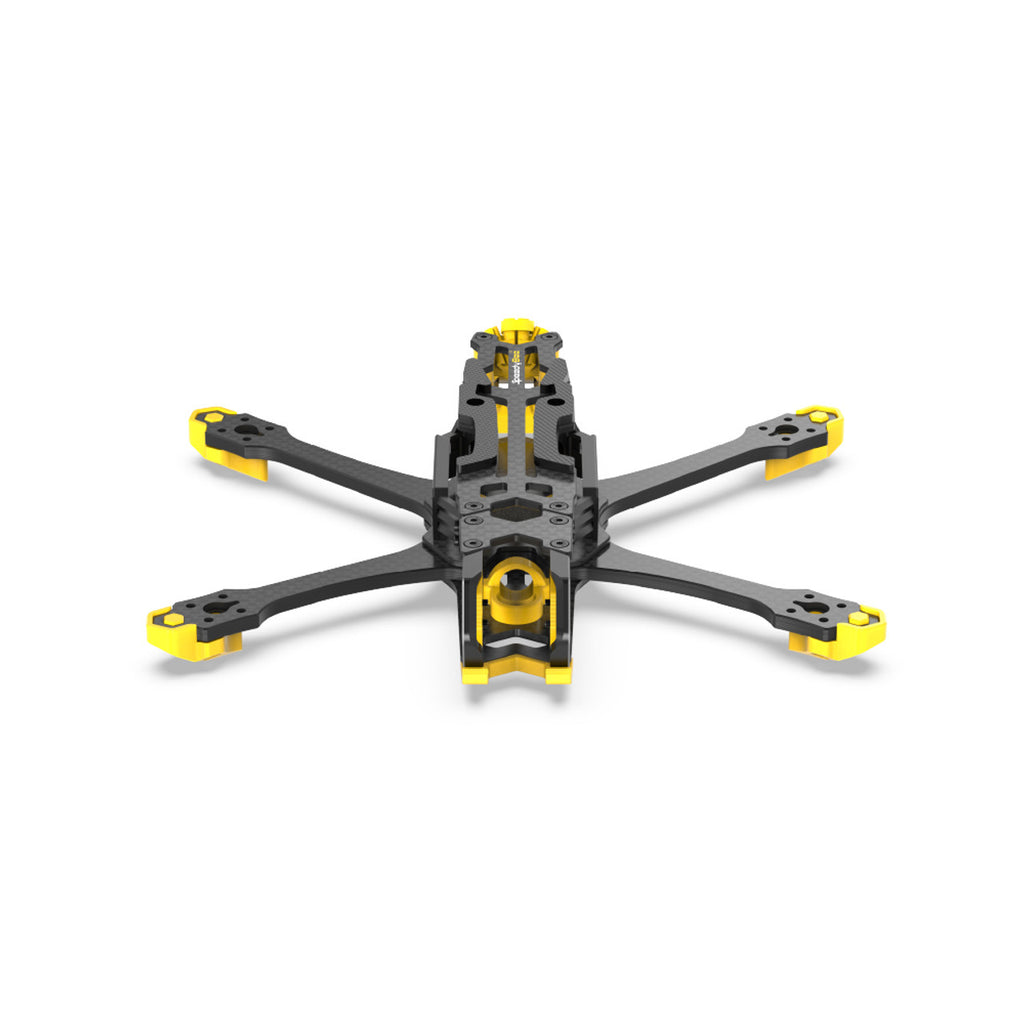

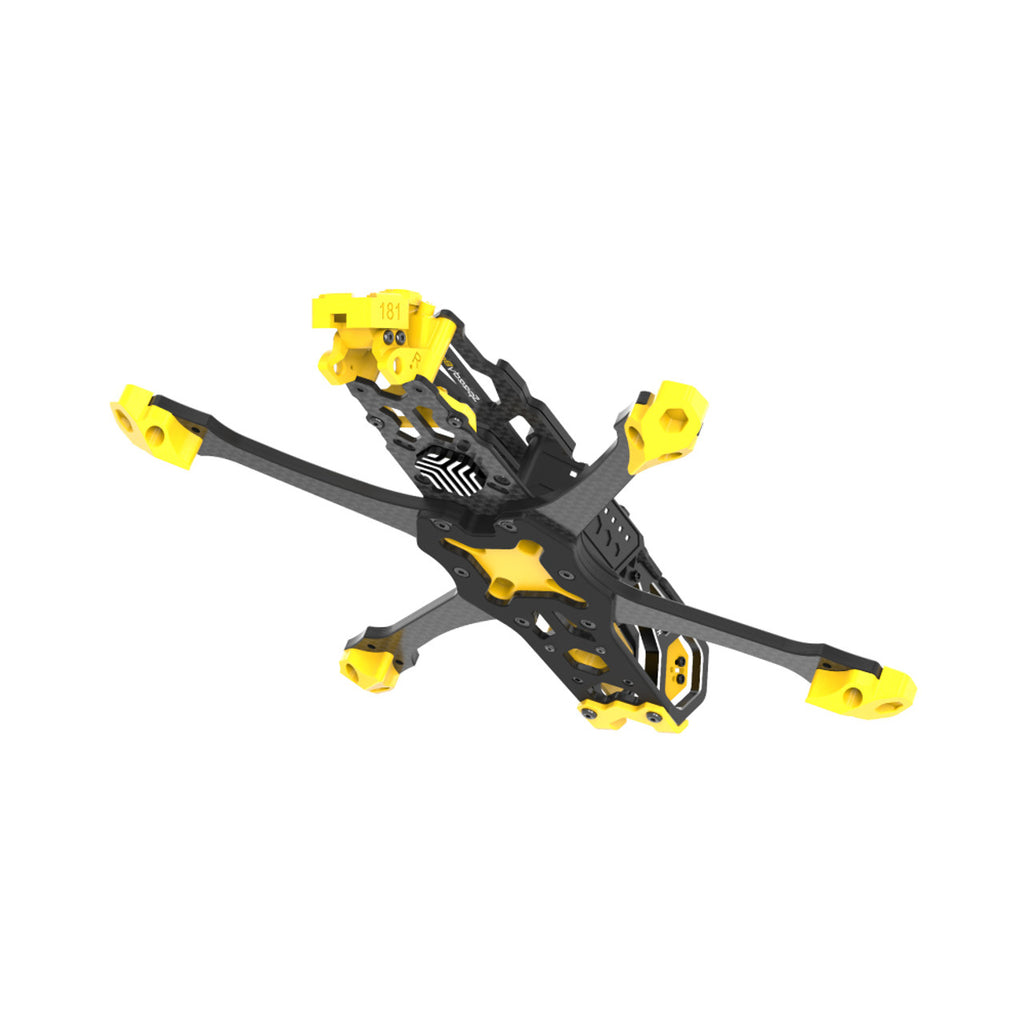

SPEEDYBEE Master 5 V2 Frame

Specifications

Model: Master 5 V2

Wheelbase: 226mm

Weight: About 140g (non-3D printed parts included)

Top plate thickness: 2.5mm(T300 3K)

Middle plate thickness: 2mm(T300 3K)

Bottom plate thickness: 2.5mm(T300 3K)

Arm thickness: 5mm(T300 3K)

Camera side plate thickness: 2mm TUPC

Anti-vibration stack structure hardness: Yellow HB80、Translucent HB50

3D printed par: Yellow TPU

Motor circlip spacing: Φ8mm

Compatible propellers: 5-5.1 inch

Mounting holes for motors: 16*16mm

FC mounting hole: 30.5×30.5(M3) & 20×20mm (M3)

Drone head: 7075 CNC aluminum alloy

Aluminum standoff: 7075 M3*23mm*(6mm/4.7mm)、M3*23mm*(4.6mm)

Internal installation height: 23-30mm

Standard antenna installation suppor: SMA (single), O3 4mm, RunCam Link

Standard GPS base size: 18*18*8mm (other size requiresan additional purchase)

Rear Support Mounting Holes: 20*20mm - 25.5*25.5mm - 30.5*30.5mm

Detachable stack protective plate RGB LED: included

Motor wire protection: included

Included 3D printed parts: GOPRO base, capacitor/buzzerbase, arm protection, 181GPS base, T-antenna base, CNC drone head TPU protection, camera anti-vibration module

Buzzer: TMB12A05
