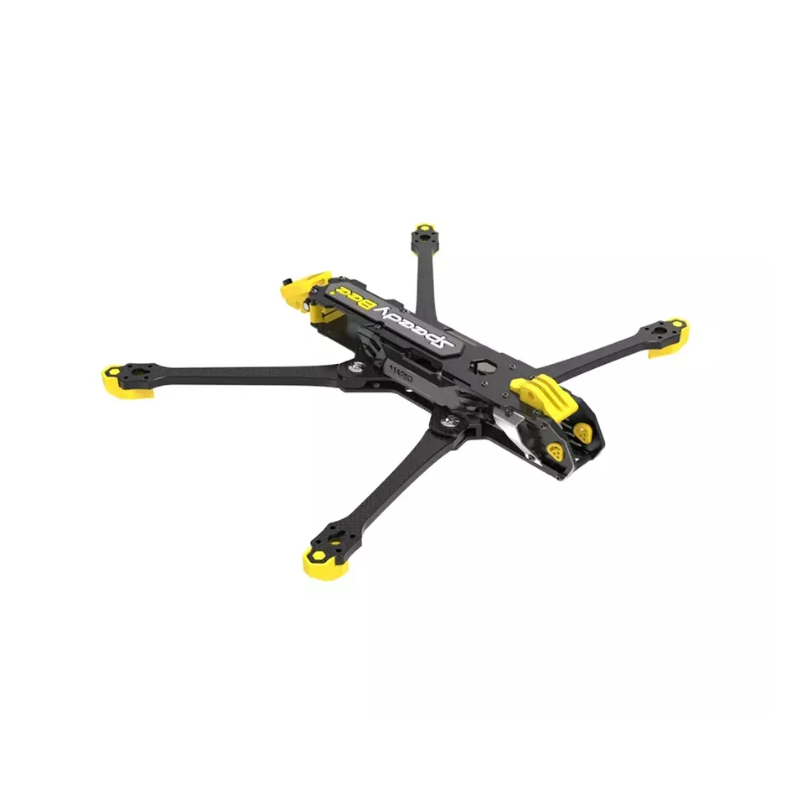

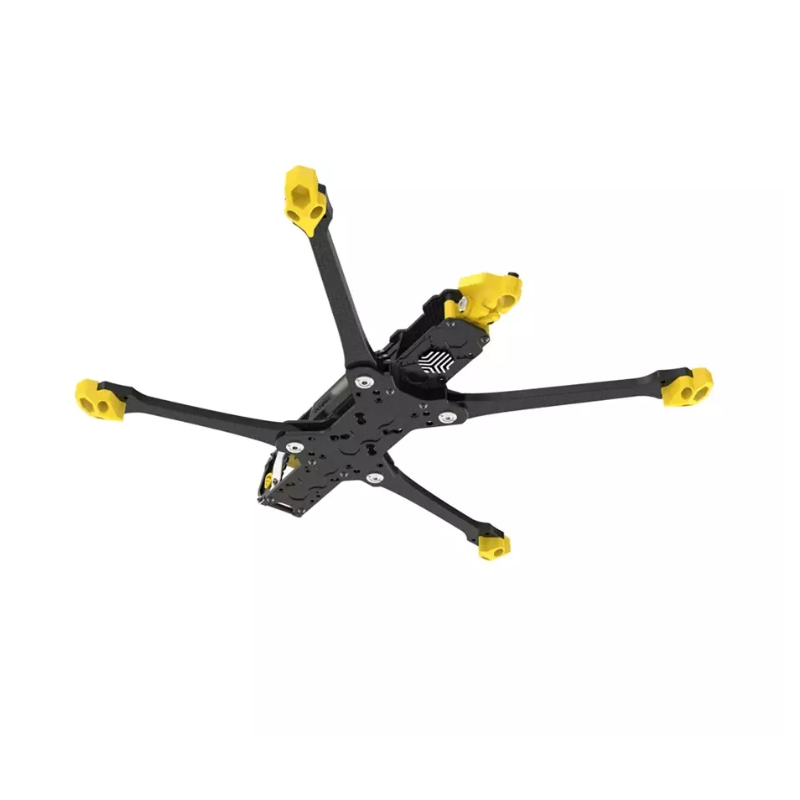

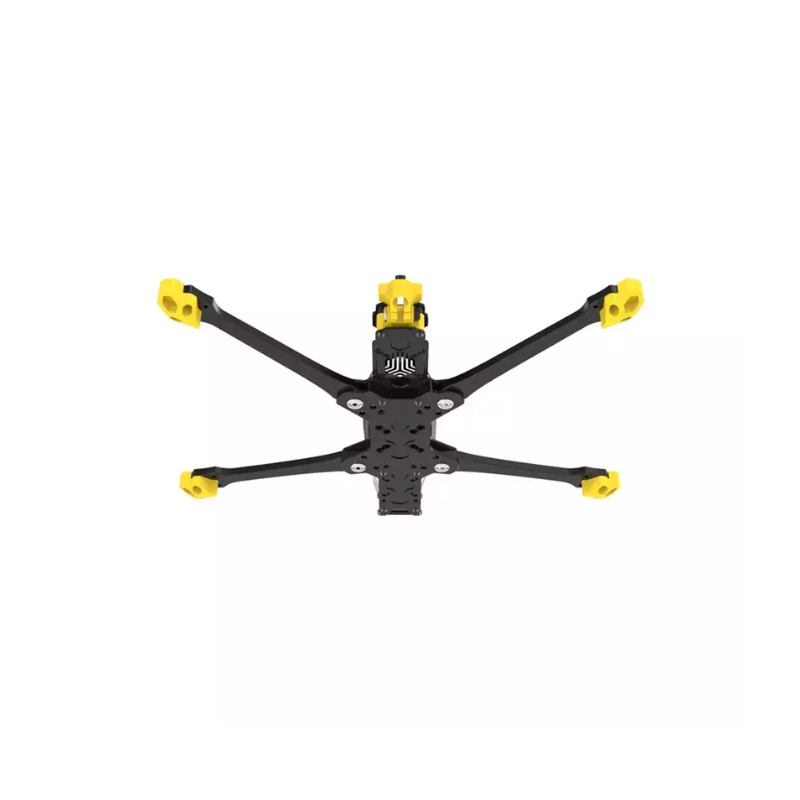

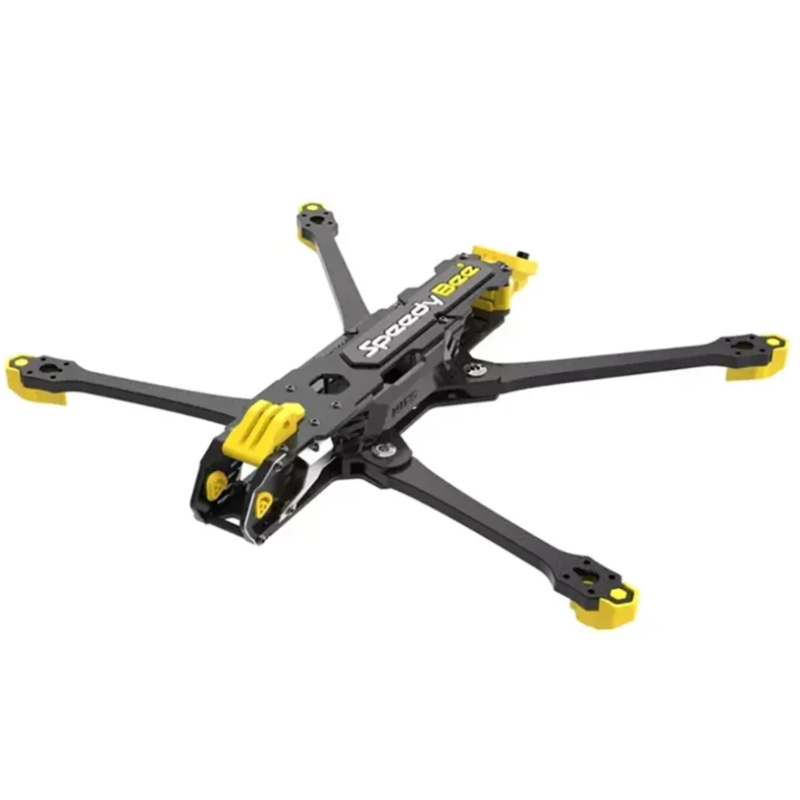

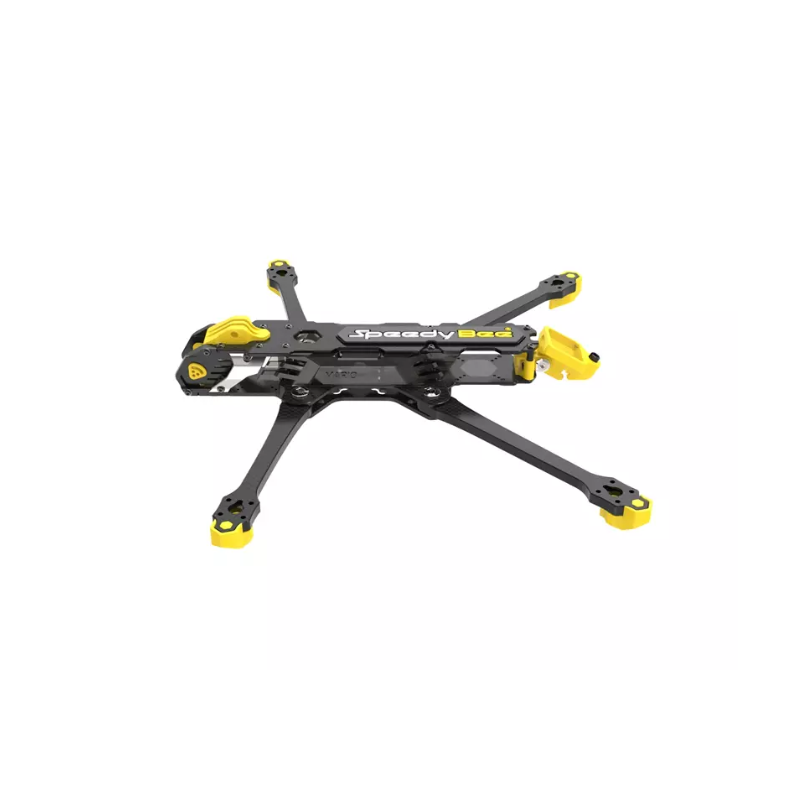

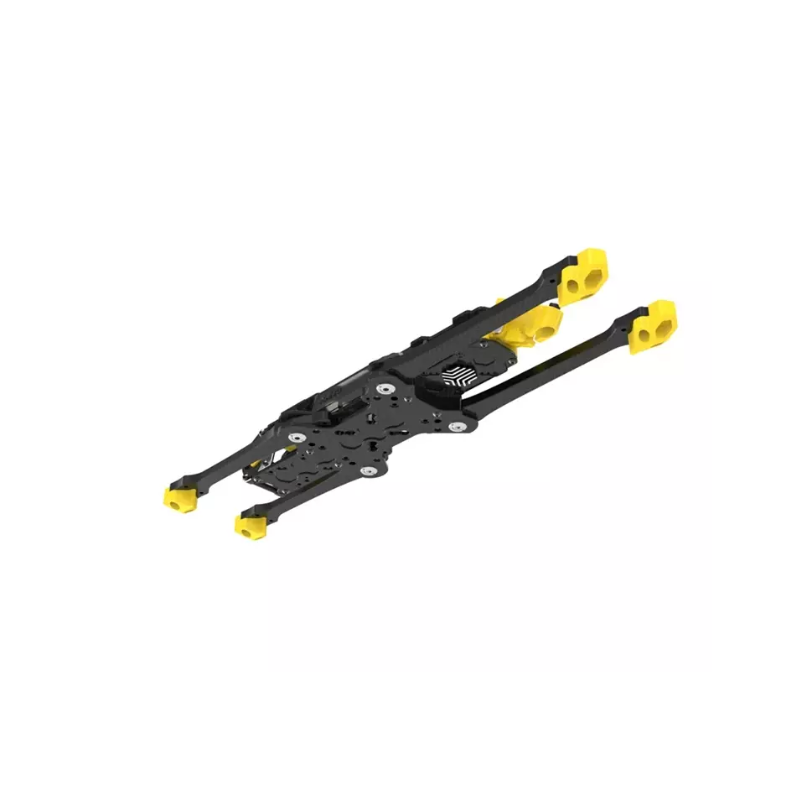

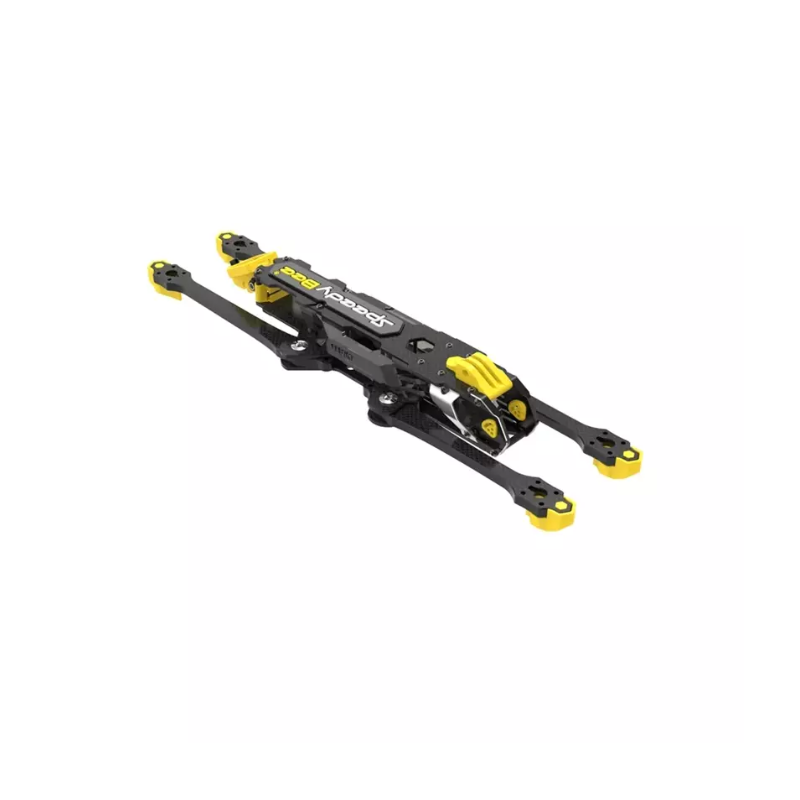

SPEEDYBEE Mario 8 Foldable Frame

Specifications

Model: Mario 8 Foldable

Wheelbase: 360mm Front: 305mm Rear: 272mm

Top plate thickness: 2.5mm (T300 3K)

Middle plate thickness: 2.5mm (T300 3K)

Bottom plate thickness: 3mm (T300 3K)

Arm thickness: 7mm (T300 3K)

Camera screw: 7mm

3D printed: yellow TPU

PC stack side plate

Anti-slip battery pad: Silicone resin

Distance between motor spring rings: 9 mm

Propellers: 7-8 inches

Holes for mounting motors: 19mm

FC mounting hole: 30.5×30.5(M3) & 20x20mm (M3)

Drone head: 7075 CNC aluminum alloy

Aluminum stand 7075: M3*22mm (5mm&4.6mm)

Internal mounting height: 22-31mm

Antenna mounting: SMA OR O3 Ant CNC GPS: 25*25*8 mm

Mounting holes for motors: 16*16mm

FC mounting hole: 30.5×30.5(M3) & 20×20mm (M3)

Drone head: 7075 CNC aluminum alloy

Aluminum standoff: 7075 M3*23mm*(6mm/4.7mm)、M3*23mm*(4.6mm)

Internal installation height: 23-30mm

Standard antenna installation suppor: SMA (single), O3 4mm, RunCam Link

Standard GPS base size: 18*18*8mm (other size requiresan additional purchase)

Rear Support Mounting Holes: 20*20mm - 25.5*25.5mm - 30.5*30.5mm

Detachable stack protective plate RGB LED: included

Motor wire protection: included

Included 3D printed parts: GOPRO base, capacitor/buzzerbase, arm protection, 181GPS base, T-antenna base, CNC drone head TPU protection, camera anti-vibration module

Buzzer: TMB12A05
