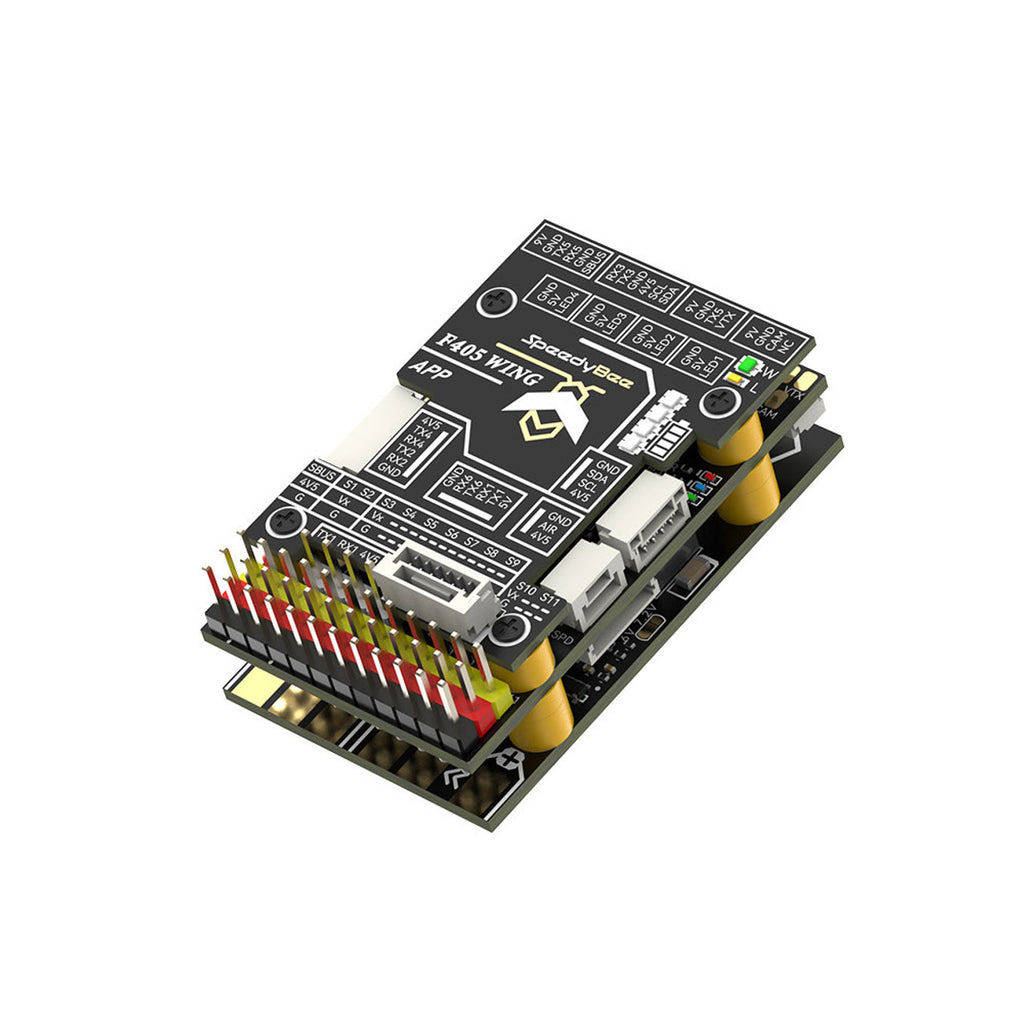

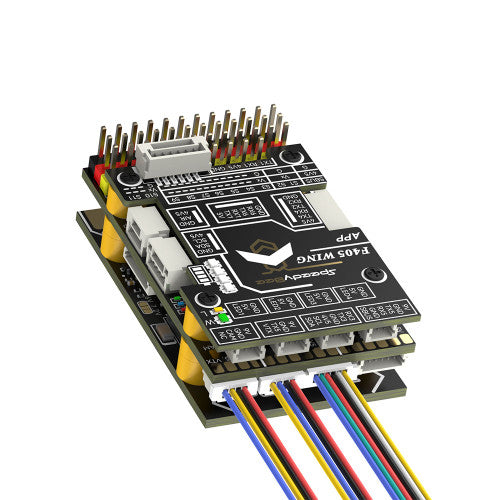

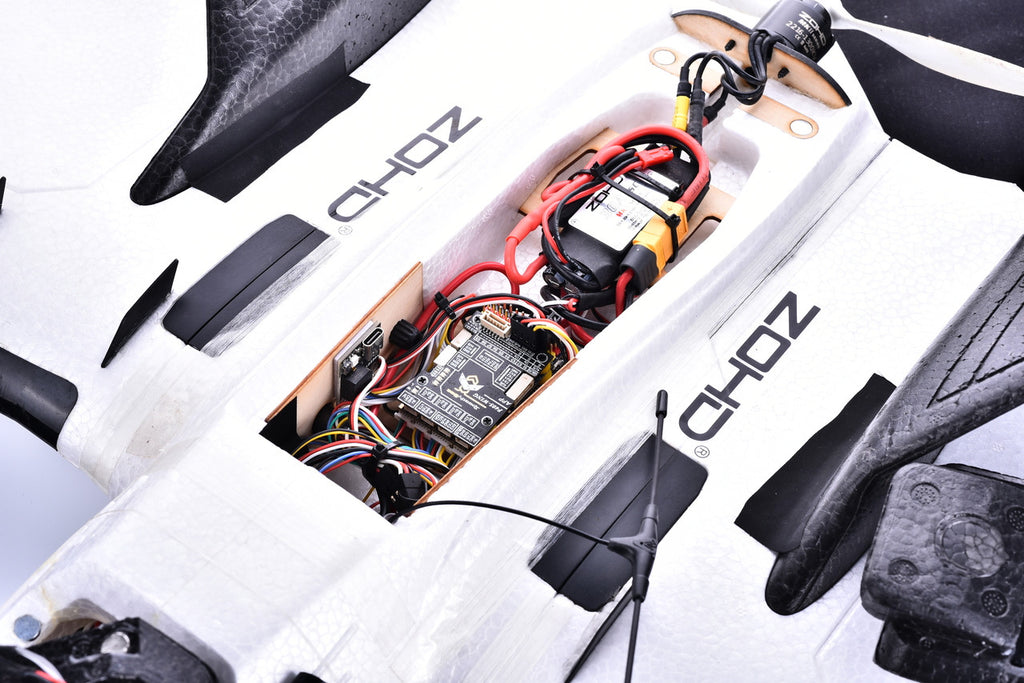

SPEEDYBEE F405 WING APP Fixed Wing Flight Controller

Specifications

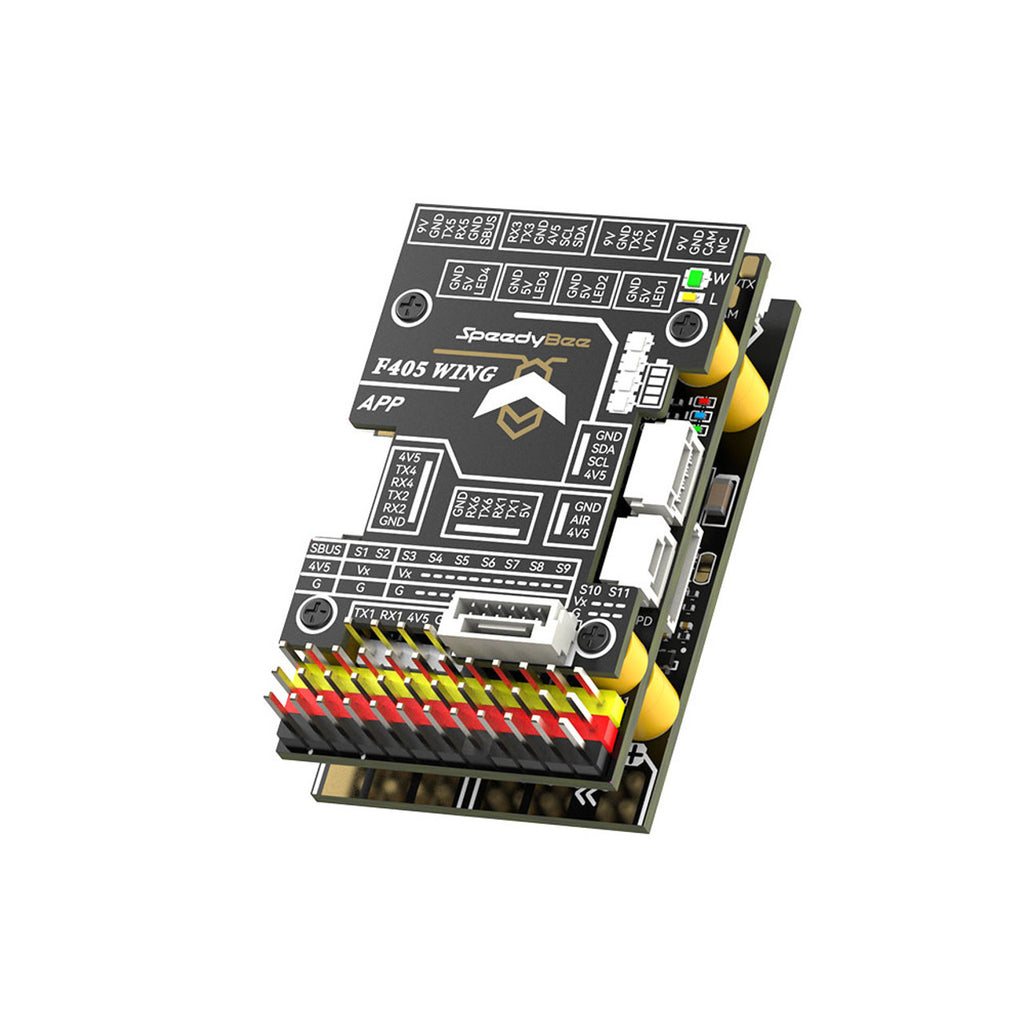

Product Name: SpeedyBee F405 WING FC board

MCU:

• STM32F405,168MHz,1MB Flash

IMU(Gyro&Accelerometer):

• ICM-42688-P

Barometer:

• SPL006-001

OSD Chip:

• AT7456E

Blackbox:

• MicroSD Card Slot

UART:

• 6 sets(USART1, USART2, USART3, UART4, UART5, UART6(Dedicated for Wireless board Telemetry connection))

I2C:

• 1x Used for magnetometer, digital airspeed sensor

ADC:

• 4x (VBAT, Current, RSSI, Analog AirSpeed)

PWM:

• 12x (11+1“LED”pad)

ELRS/CRSF receiver:

• Supported, connected to UART1

SBUS:

• Built in inverter for SBUS input (UART2-RX)

LED:

• 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red) 1x RGB

RSSI:

• Supported,Named as RS

Supported FC Firmware:

• INAV: SpeedyBeeF405WING(default)
• ArduPilot: SpeedyBeeF405WING

Weight:

• 8.9g

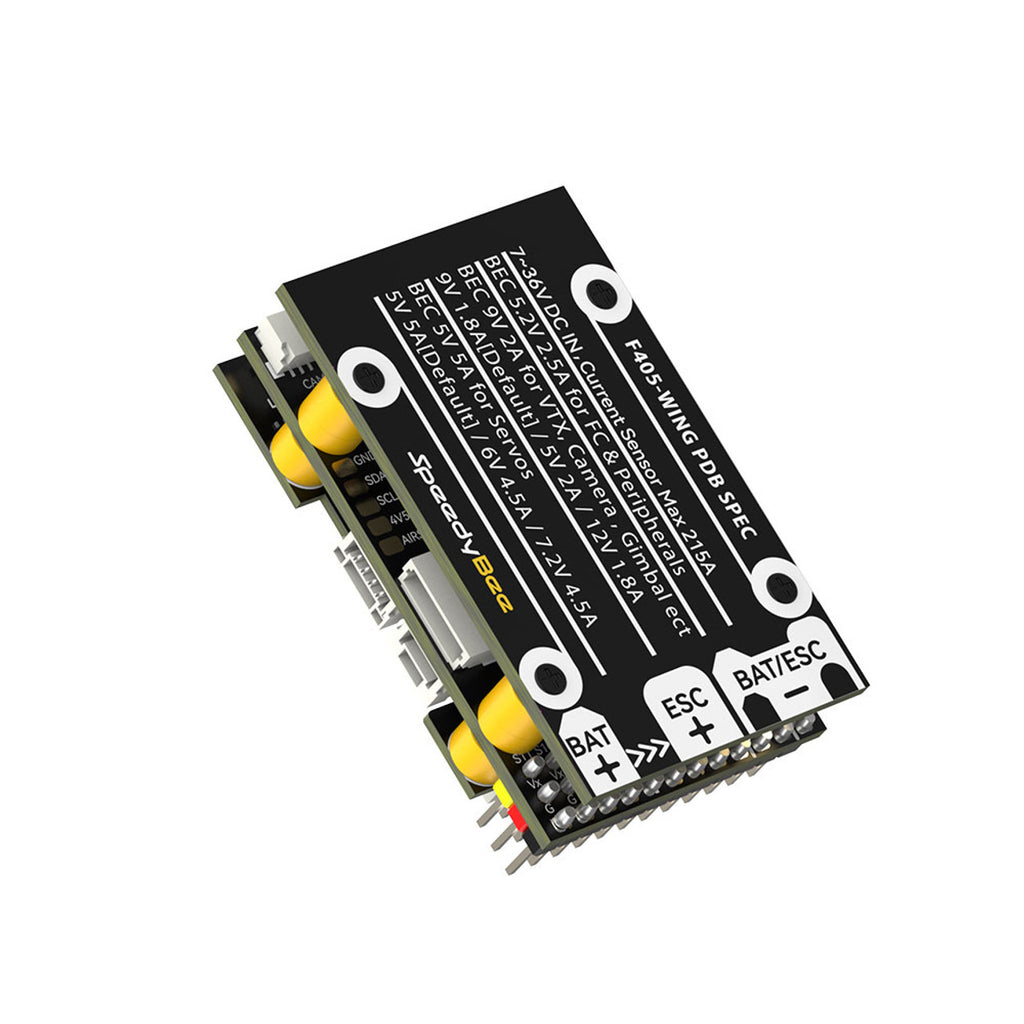

Product Name: SpeedyBee F405 WING PDB board

Input voltage range:

• 7~36V (2~6S LiPo)

Battery Voltage Sensor :

• Connect to FC board VBAT, 1K:10K (Scale 1100 in iNav, BATT_VOLT_MULT 11.0 in ArduPilot)

Battery Current Sensor :

• 90A continuous, 215A peak Connect to FC board Current (Scale 195 in iNav, 50 A/V in ArduPilot)

TVS Protective diode:

• Yes

FC BEC output:

• Output 5.2V +/- 0.1V DC Continuous current 2.4 Amps
• 3A Peak Designed for FC
• Receiver
• GPS module
• AirSpeed module
• Telemetry module
• WS2812 LED_Strip

VTX BEC output:

• Output 9V +/- 0.1V DC Continuous current 1.8 Amps
• 2.3A Peak Voltage adjustable
• 9V Default
• 12V or 5V via jumper Designed for Analog Video Transmitter,Digital Video Transmitter, Camera.

Servo BEC output: Output 4.9V +/- 0.1V DC Continuous current 4.5 Amps, 5.5A Peak Voltage adjustable, 4.9V Default, 6V or 7.2V via jumper Designed for Servos.

Weight: 11.4g

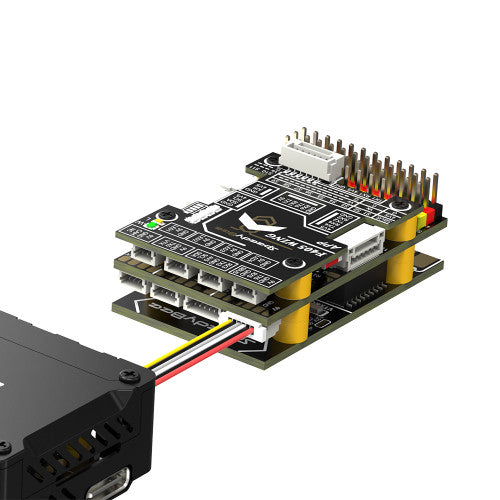

Product Name: SpeedyBee F405 WING Wireless board

Wireless Configuration (long press BOOT button for 6 seconds to switch modes):

• BLE mode, connect to Speedybee APP
• Wi-Fi mode, connect to QGroundControl APP, Speedybee APP, MissionPlanner, etc.
• Classic Bluetooth SPP mode, connect to QGroundControl APP, MissionPlanner

LED strip controller (short press BOOT button to switch effects, long press 2 seconds to switch modes):

• 4x WS2812 LED strip connectors, adjustable colors and flashing modes
• Max 5.2V 1.3A, supports around 70pcs 5050 WS2812 LED beads

On-board battery level indicator

• 4x RGB indicator LED for battery level display by number of lights

Weight:

• 4.2g
