ISDT Q8 MAX

ISDT Q8 MAX

The ISDT Q8 Max is a next-generation pocket-sized charger built for high-performance charging in a compact design. Delivering up to 1000W of power with a maximum charging current of 33A, it supports a wide range of battery types including LiPo, LiHV, LiFe, NiMH, NiCd, and Pb (2–8S/1–16S).

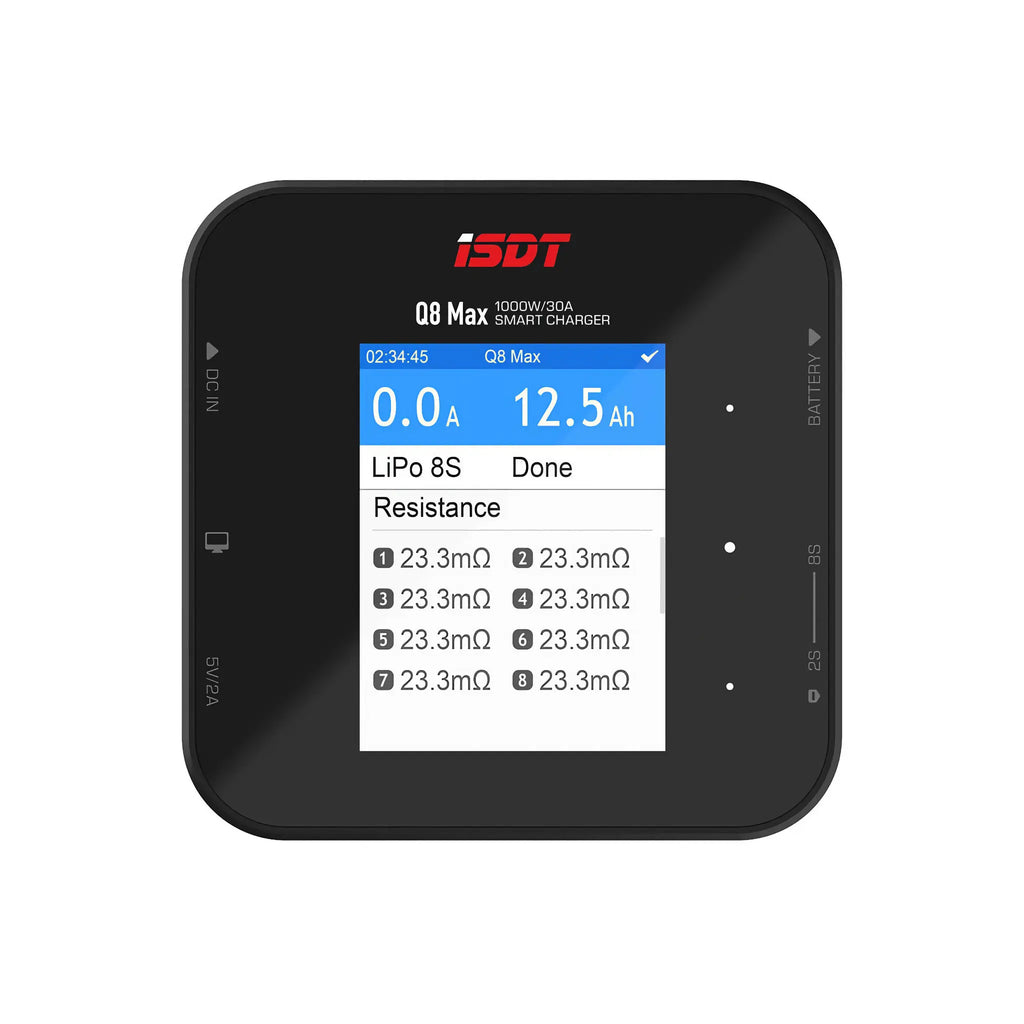

Equipped with a 2.8" IPS display featuring auto-brightness adjustment and a dark mode, the Q8 Max ensures clear visibility in all environments while reducing eye strain in low-light conditions. The 5V/2A USB output allows you to conveniently charge mobile devices, making it versatile for field use.

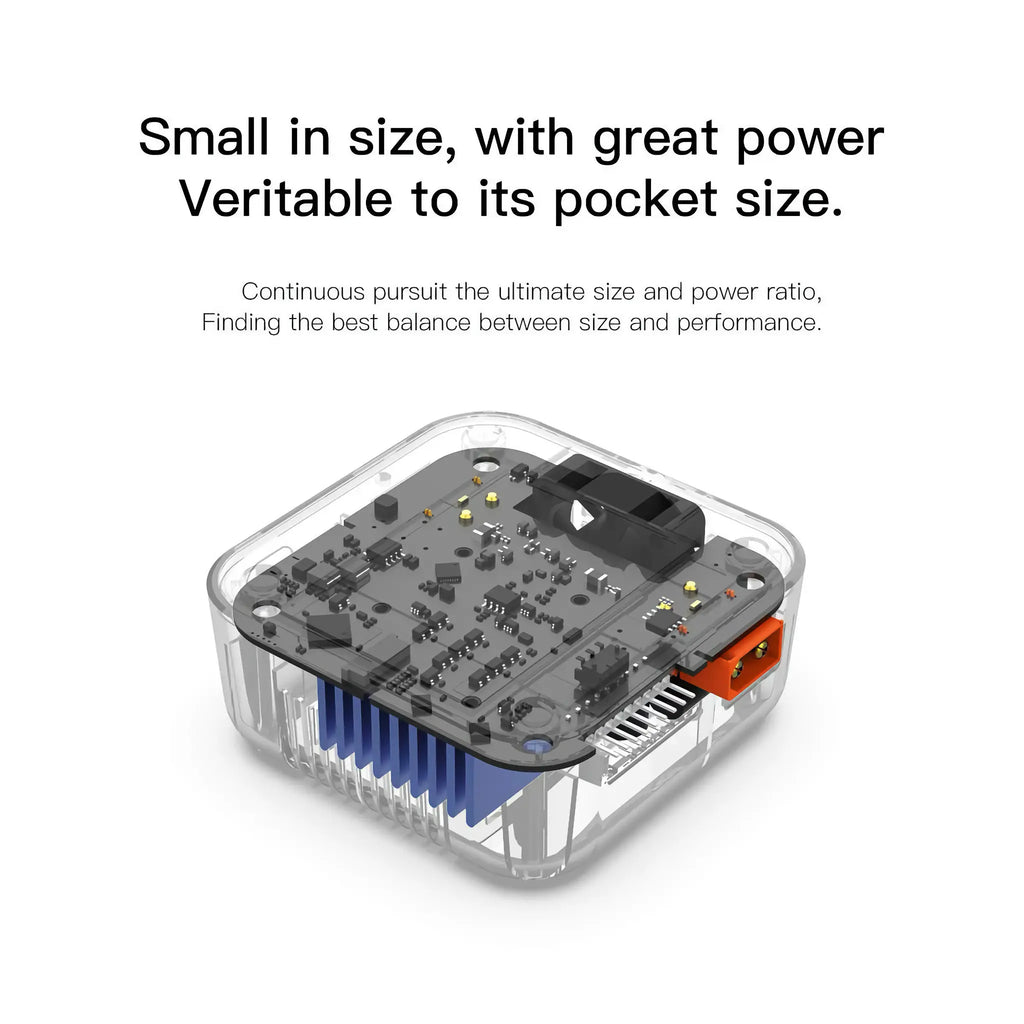

Its advanced active cooling system with cross-flow air ducts, ball-bearing fan, aluminum fins, and heat-conductive silicon pad guarantees efficient heat dissipation, even during high-load charging. With built-in safety features such as abnormal voltage alarms and incorrect cell count detection, the Q8 Max combines power, portability, and reliability for RC enthusiasts, drone pilots, and hobbyists.

SPECIFICATIONS

• Input voltage: DC 10-34V
• Maximum input current: 33A
• BattGP Support Smart Battery: Suport input and output
• Output voltage: 1-34V
• Charging current: 0.2-30.0A
• Discharge current: 0.2-3.0A
• Maximum load capacity: 1000W
• Max. Discharge capacity: 30W
• Compensation current: 1.5A / cell Max
• Balance cells: 2-8S
• Support Battery Types and cell count:
  • LiFe, Lilon, LiPo 1-8S
  • LiHV 1-7S
  • NiMH, Cd 1-16S
  • Pb 1-12S
• Display: 2.8 inch 320 x 240 IPS LCD
• Operating temperature: 0 - 40°C
• Storage temperature: -20°C - 60°C
• Dimensions: 95 x 95 x 45 mm
• Weight: 288g
