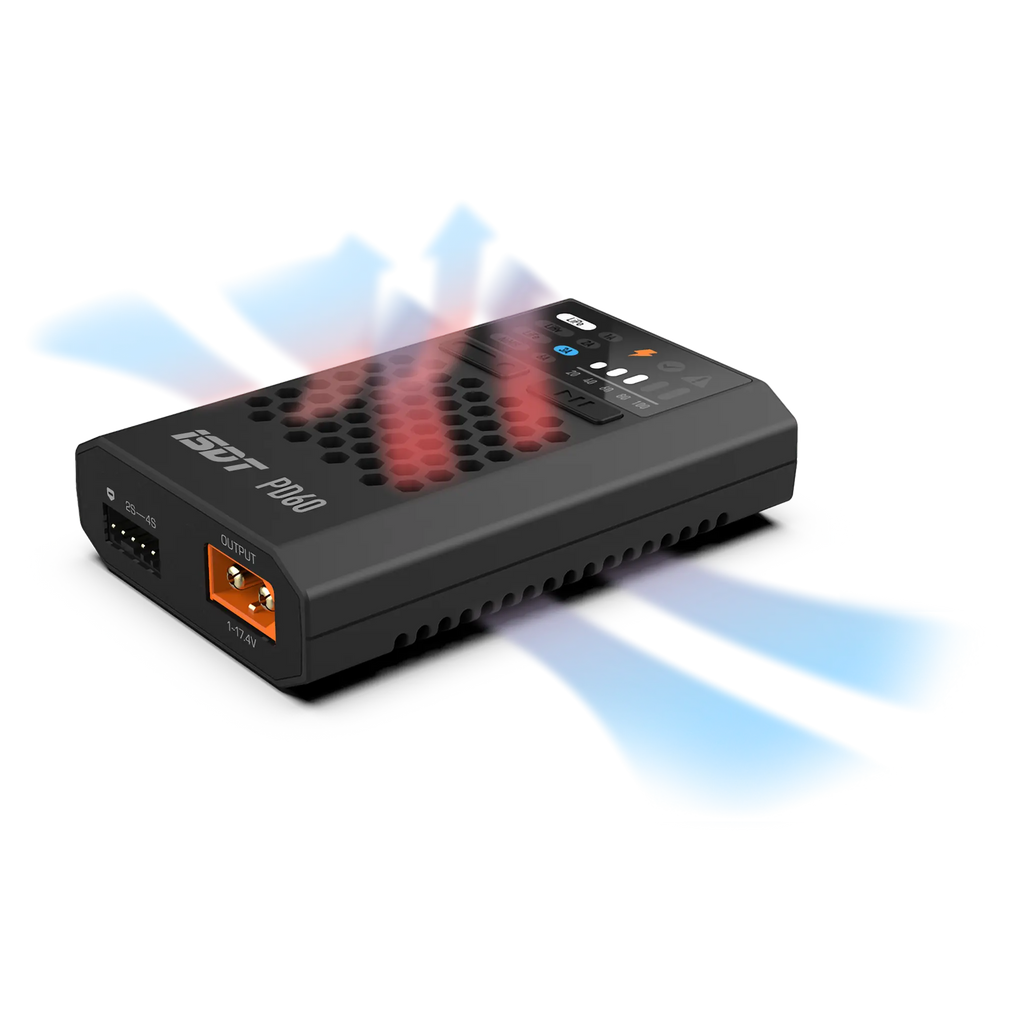

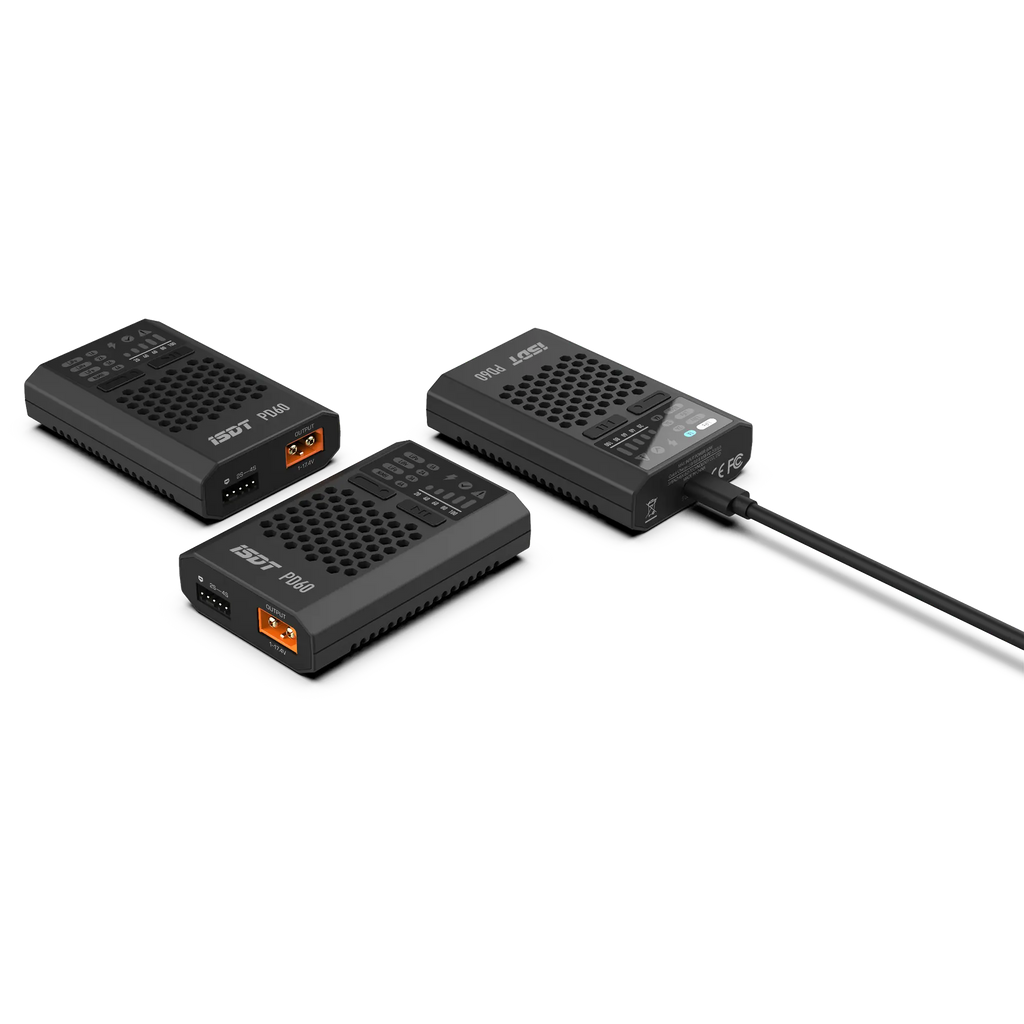

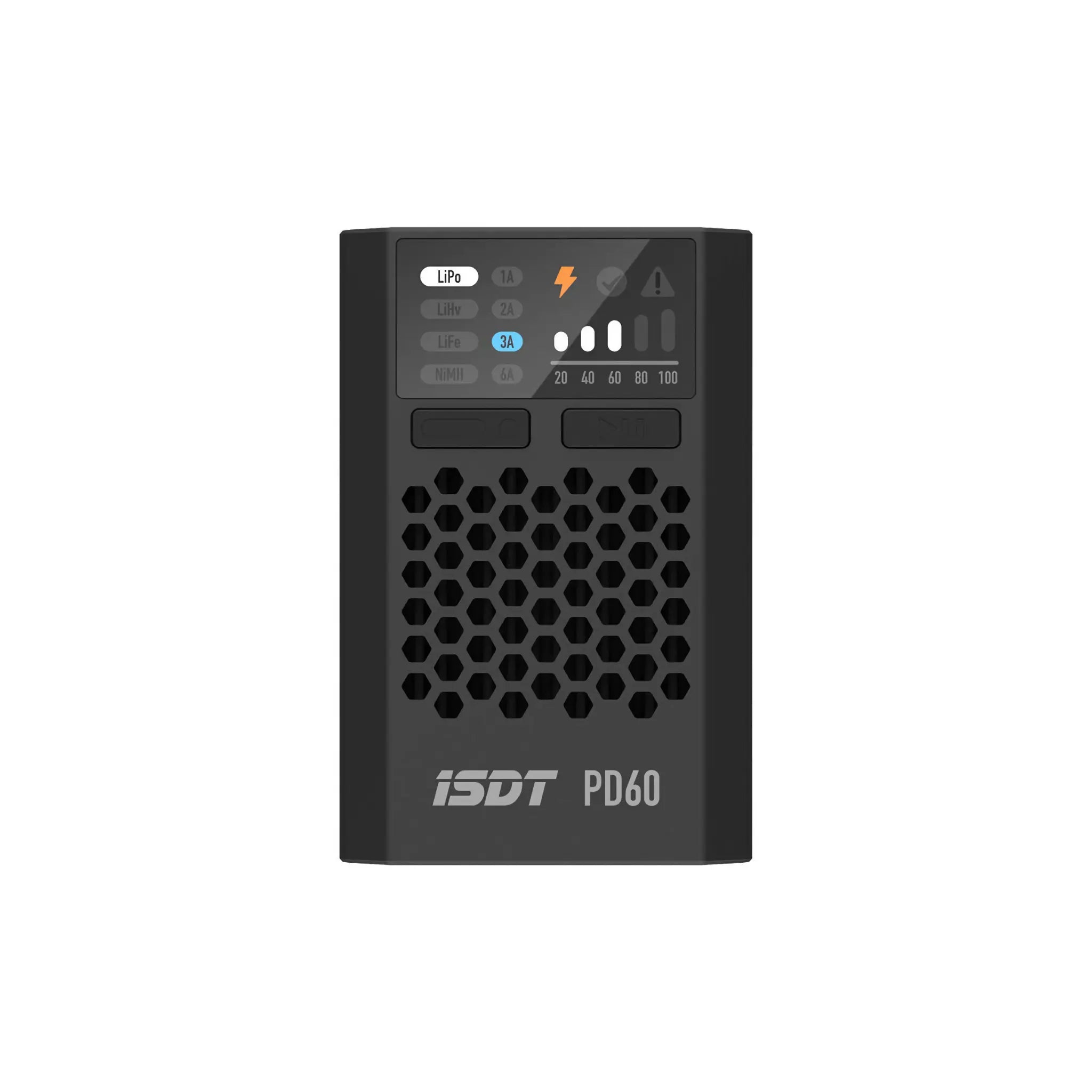

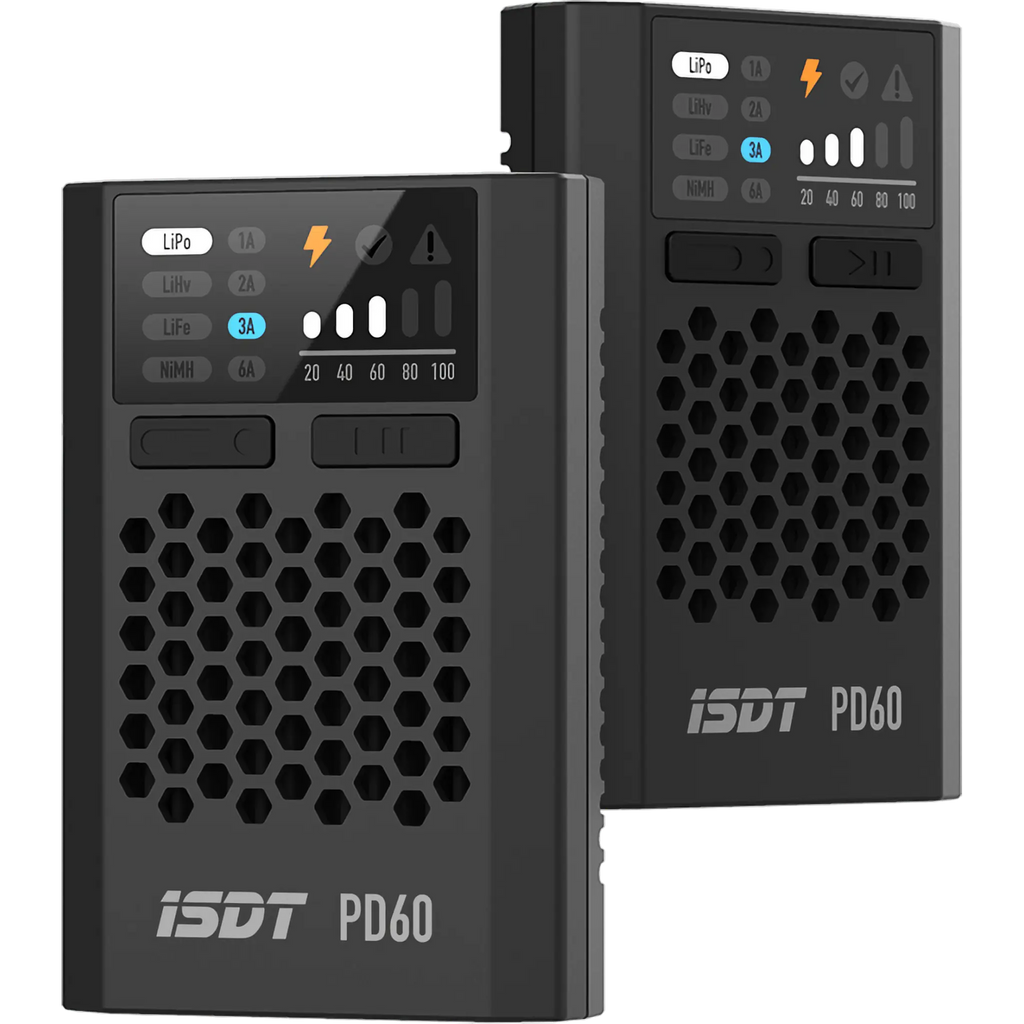

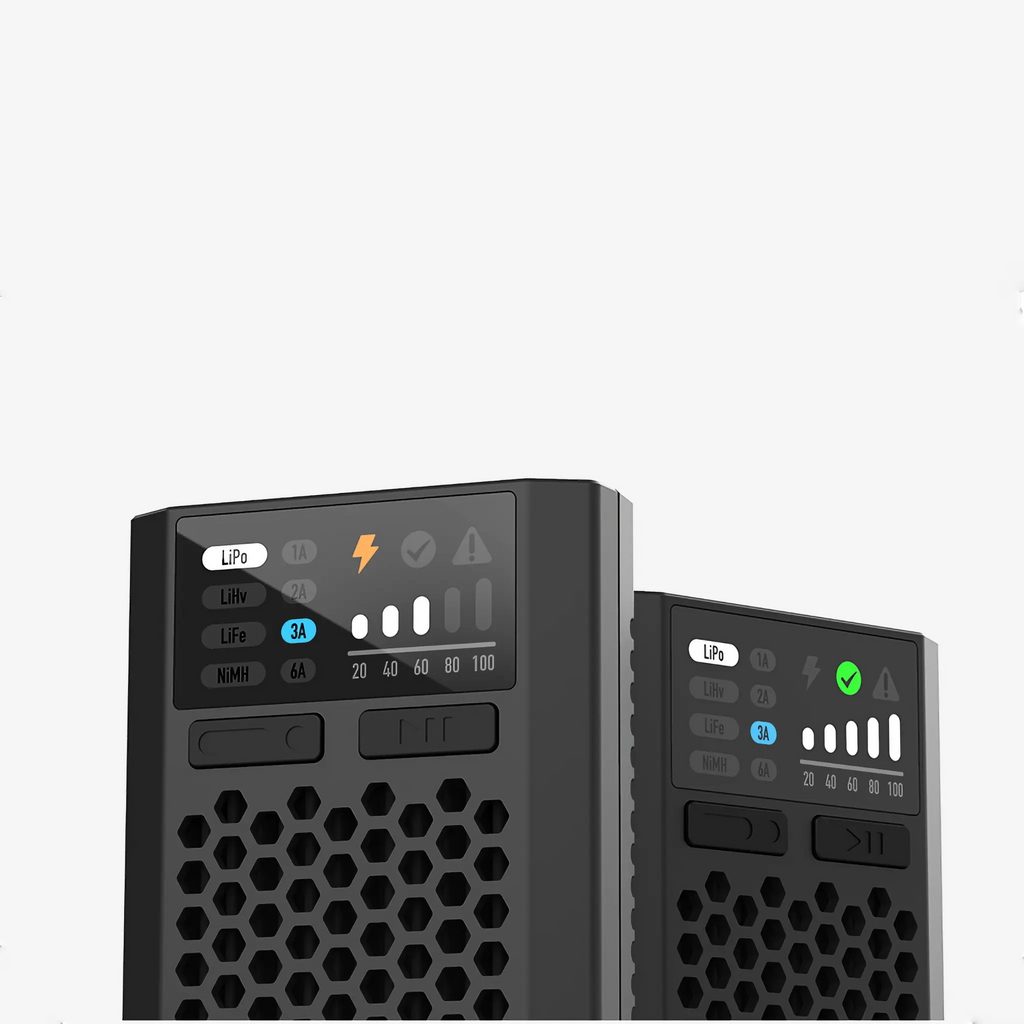

ISDT PD60

ISDT PD60

SPECIFICATIONS

• Input voltage: DC 5V-20V
• Output voltage: DC 1.0V-20V
• Max Input Current: 3A
• Charging Current: 1A/2A/3A/6A
• Max Charging Power: 60W
• Balance Current: 0.5A/Cell Max
• Support Quick-Charge: PD2.0/3.0,QC 2.0/3.0(Not supported 5V/1A power supply input)
• Support Battery Types and Cell Count:
• LiFe
• LiHV
• LiPo 1-4S
• NIMH
• Cd 1-12S
• Abnormal Voltage Alarm: Support
• Incorrect Cell Count Setting Alarm: Support
• Working temperature: 0°C-40°C
• Storage temperature: -20°C-60°C
• Dimension: 56x85x21mm
• Connector: XT60
• Weight: 87g
