ISDT K4

ISDT K4

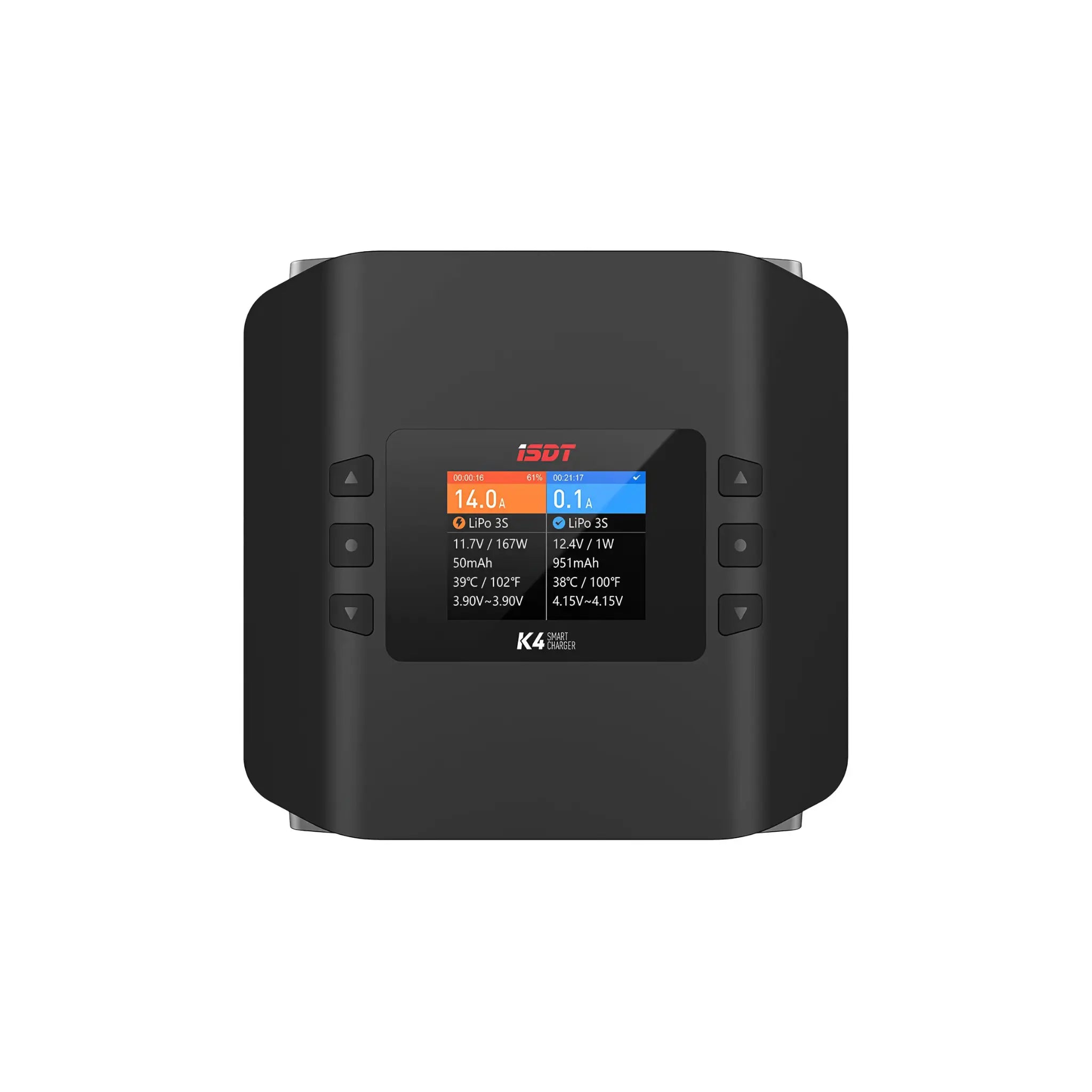

The ISDT K4 is a high-performance AC/DC smart charger designed for RC enthusiasts and professionals. With independent dual channels, it delivers up to 400W on AC or 600W x2 on DC, supporting a wide range of battery types including LiPo (1-8S), LiFe, LiIon, LiHv, Pb, and NiMH. Featuring a full-color LCD touch display, it provides real-time monitoring of voltage, current, charging time, mode, and battery health for complete control.

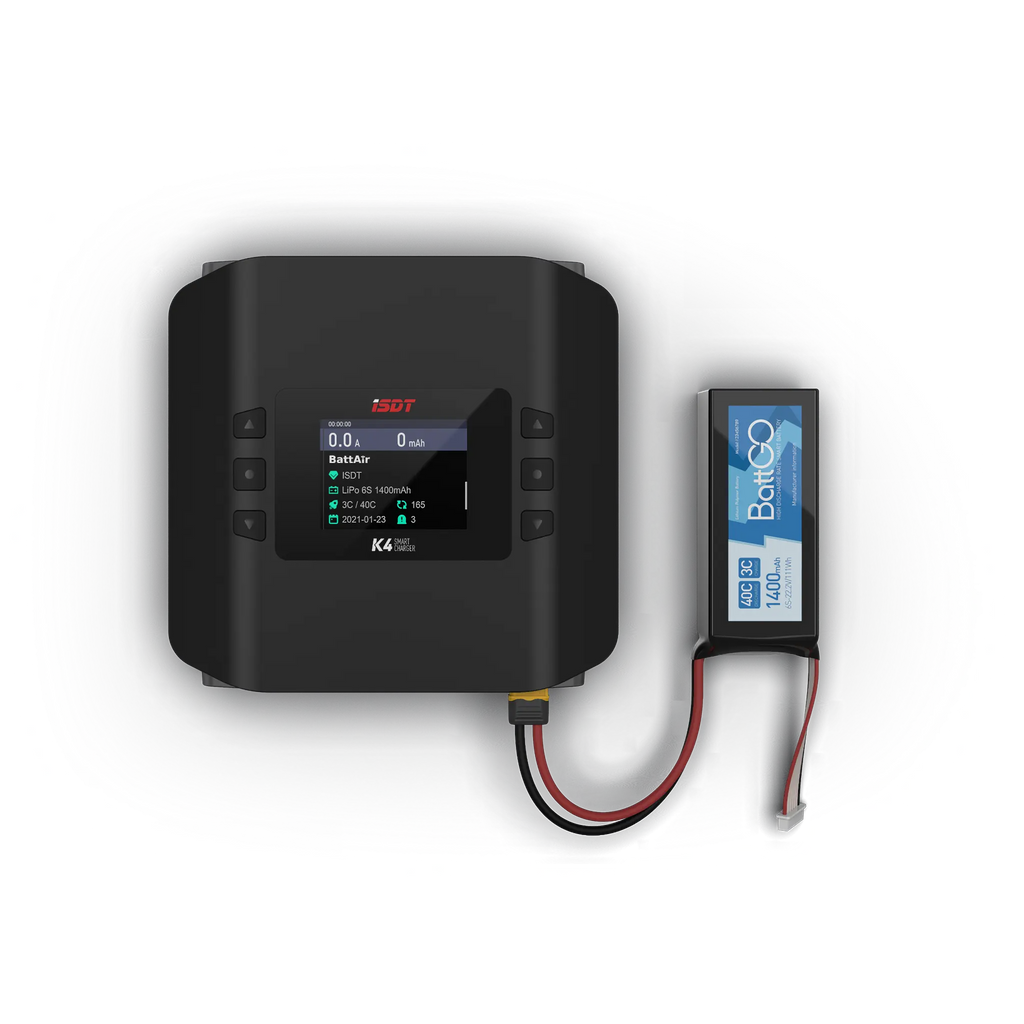

Equipped with BattAir Bluetooth connectivity and the ISD Link App, you can adjust parameters, update firmware, and monitor charging remotely. The K4 includes advanced functions such as balancing, fast charging, discharging, cycle charging, and data storage, with intelligent safety protections (over-voltage, overload, over-temp, and short-circuit).

Built with a durable aluminum alloy shell and efficient cooling system, the ISDT K4 is compact, reliable, and perfect for powering RC drones, cars, planes, and other high-demand devices.

SPECIFICATIONS

• Input voltage range:
• AC 100~240V
• DC 10~30V
• Input voltage:
• AC 100~240V
• DC 10~30V
• Output voltage: DC 1~30V
• Max. input current: DC 35A
• Charging current: 0.2~20A x2
• Discharging current: 0.2~3A x2
• Balance current: 1.5A/Cell Max
• Max. discharging power: 30W x2
• Max. charging power:
• AC 400W
• DC 600W x2
• Abnormal voltage alarm: Support
• Incorrect cell count setting alarm: Support
• Supported battery types and cell count:
• LiFe
• Lilon
• LiPo 1~8S
• LiHv 1-8S
• Pb 1-12S
• NiMH/Cd 1-16S
• Parallel charging power and current: 800W/35A
• Parallel discharge power and current: 30W/3A
• Working temperature: 0~40°C
• Storage temperature: -20°C~60°C
• Dimension: 142x135x64mm
• Weight: About 700g
