ISDT K1

ISDT K1

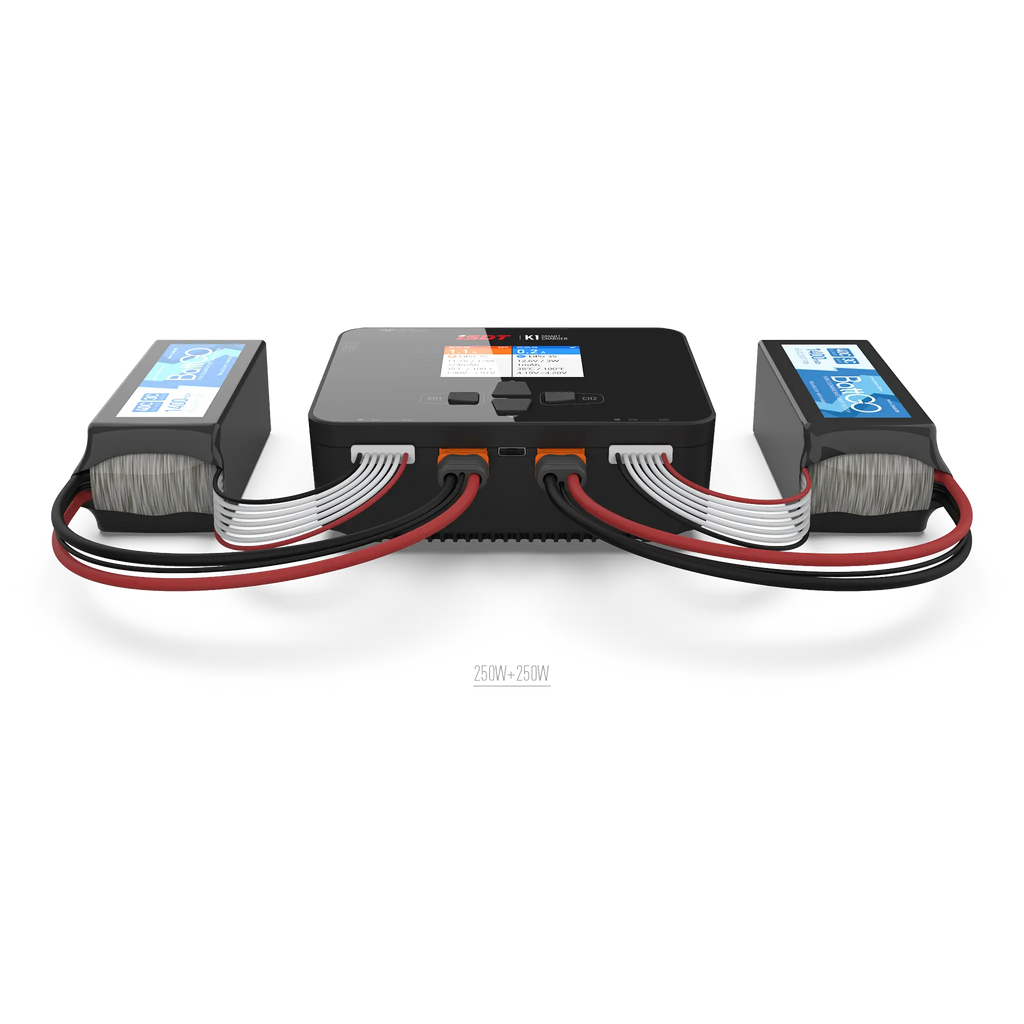

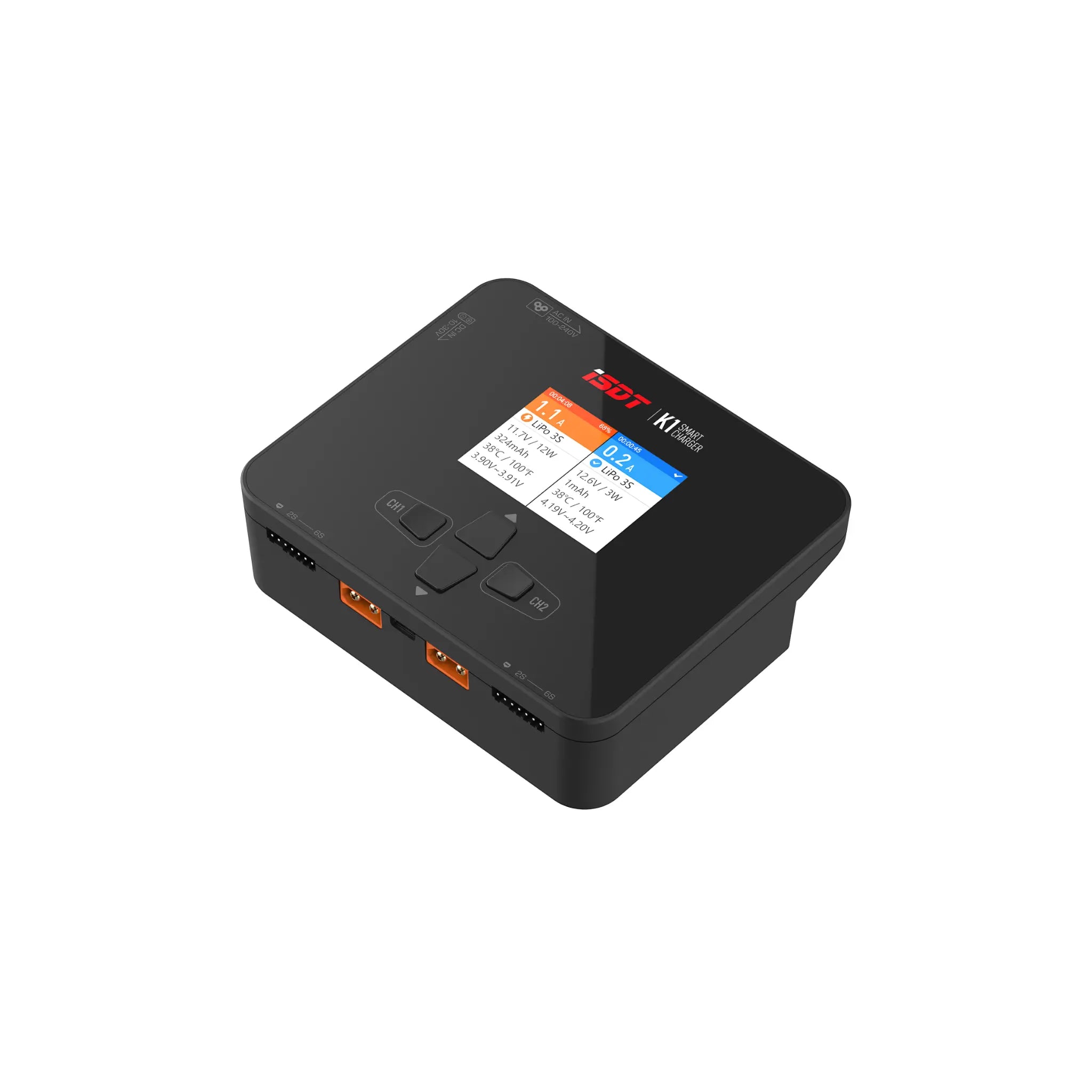

The ISDT K1 is a compact, high-performance smart charger designed for RC enthusiasts and professionals. Featuring dual-channel charging, it can simultaneously charge two different battery packs, including LiPo, LiIon, LiFe, LiHV, NiMH/NiCd, and Pb batteries. Each channel works independently, allowing different battery types and sizes to charge at the same time or combine channels in parallel mode for higher power output.

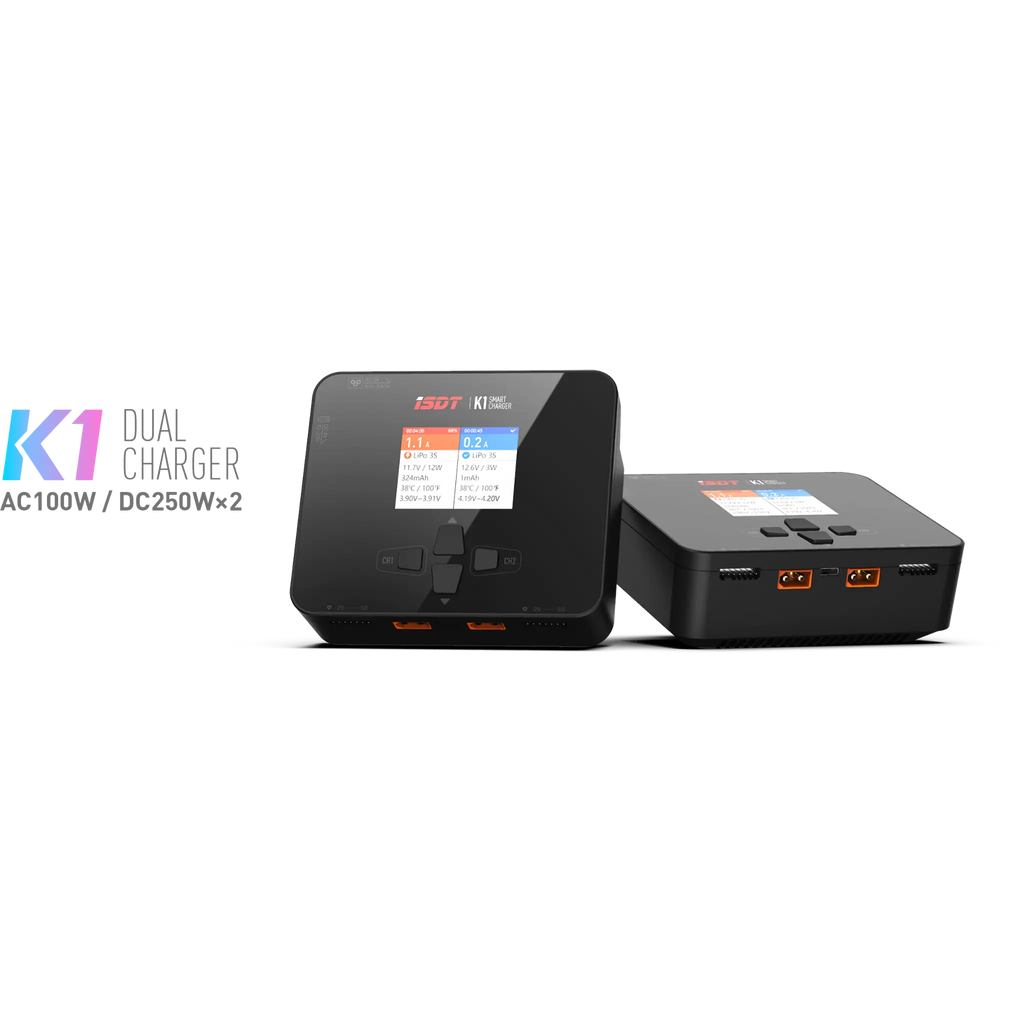

With dual AC/DC input support, the K1 delivers up to 100W on AC and 250W x2 on DC, providing flexible and efficient charging options. Its intelligent charging system automatically detects battery type, ensuring safe, optimized performance with built-in alarms for abnormal voltage and incorrect cell count settings.

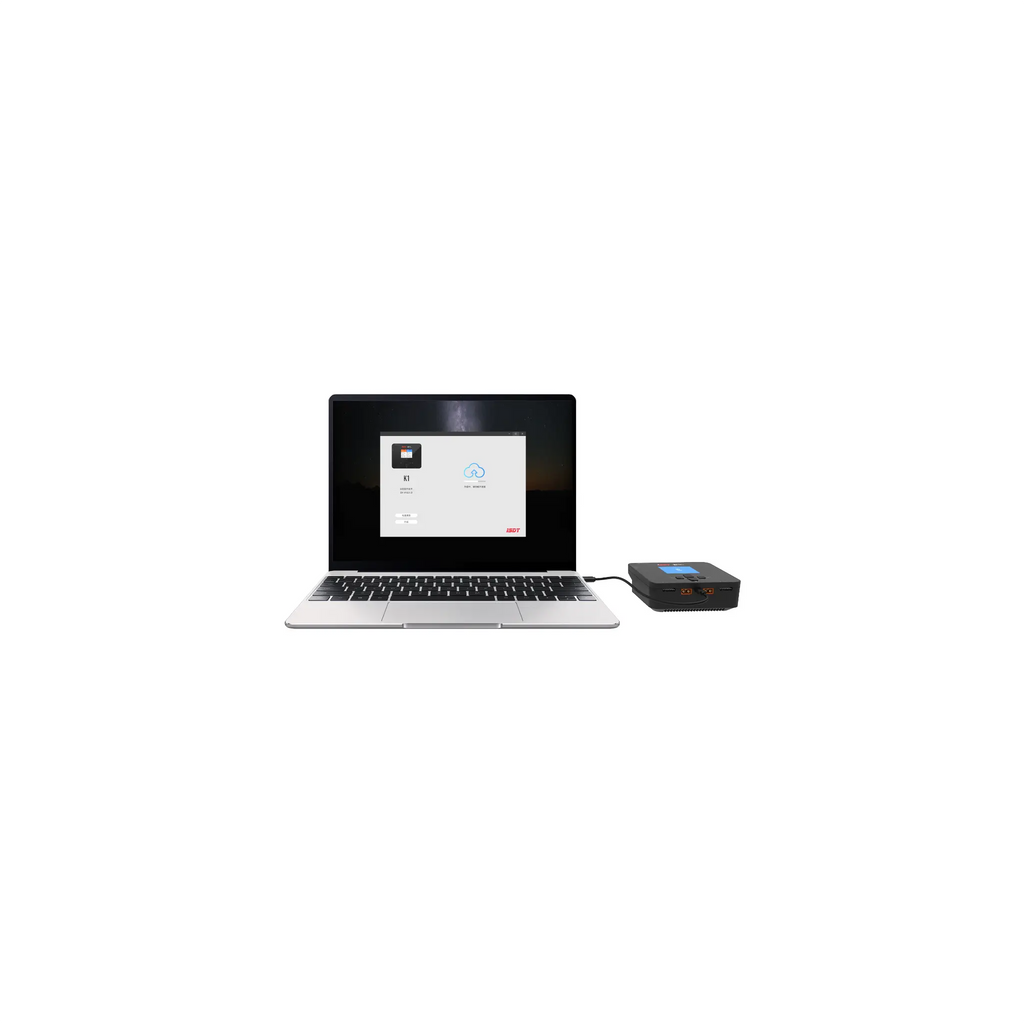

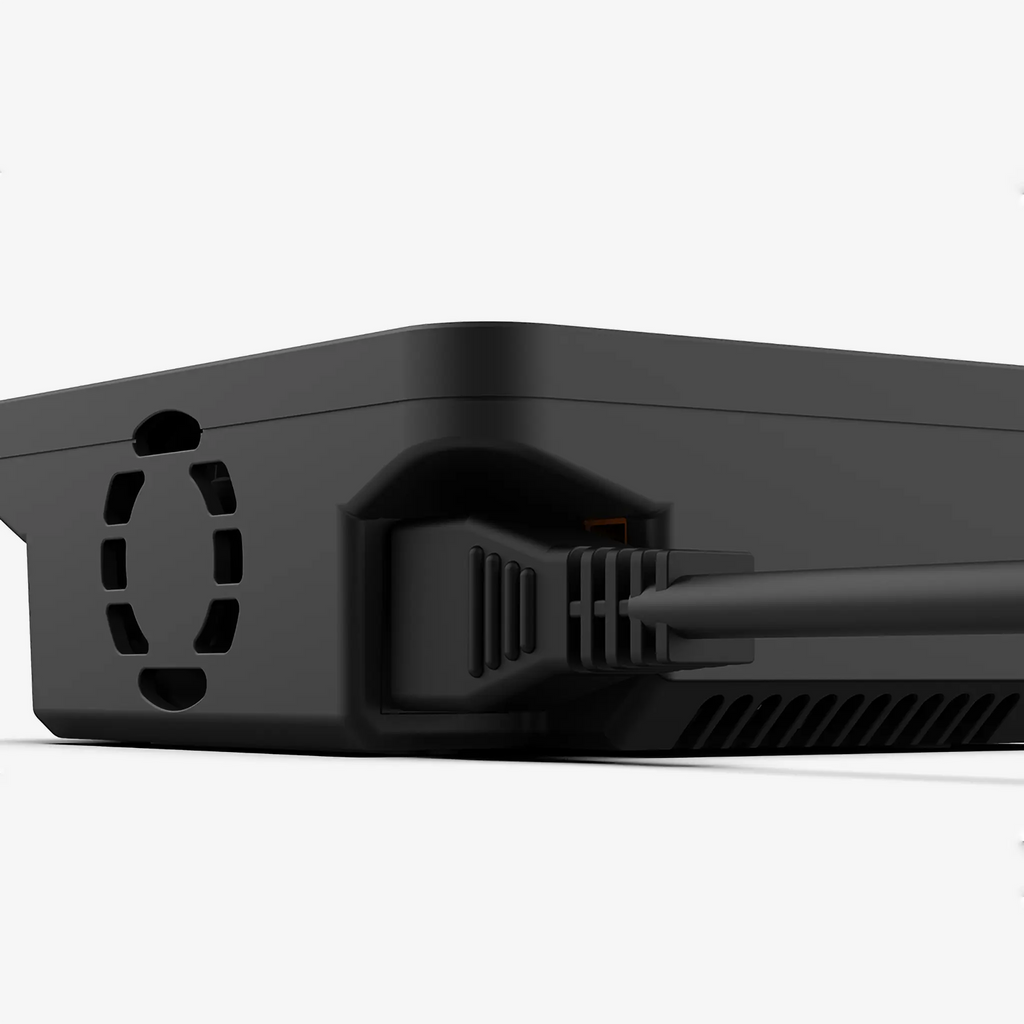

Engineered for reliability, the K1 includes a robust cooling system with an optimized internal structure and a ball-raced fan for effective heat dissipation. The charger is equipped with XT60 ports, balance connectors, and a micro USB portfor firmware updates, ensuring it stays up to date with the latest enhancements.

Lightweight, portable, and powerful, the ISDT K1 is the perfect choice for RC planes, drones, cars, and hobbyists who demand speed, safety, and convenience in a smart charging solution.

SPECIFICATIONS

• Input voltage:
• AC 100~240V
• DC 10~30V
• Output voltage: DC 1~26.7V
• Max. input current: 20A
• Charging current: 0.2~10.0A x2
• Balance current: 0.5A/Cell Max
• Max. charging power:
• AC 100W
• DC 250W x2
• Abnormal voltage alarm: Support
• Incorrect cell count setting alarm: Support
• Supported battery:
• LiFe
• LiIon
• LiPo
• LiHv
• ULiHv 1~6S
• Pb 1~10S
• NiMH/Cd 1~16S
• Working temperature: 0°C~40°C
• Storage temperature: -20°C~60°C
• Dimension: 135x115x49 mm
• Weight: About 485g
