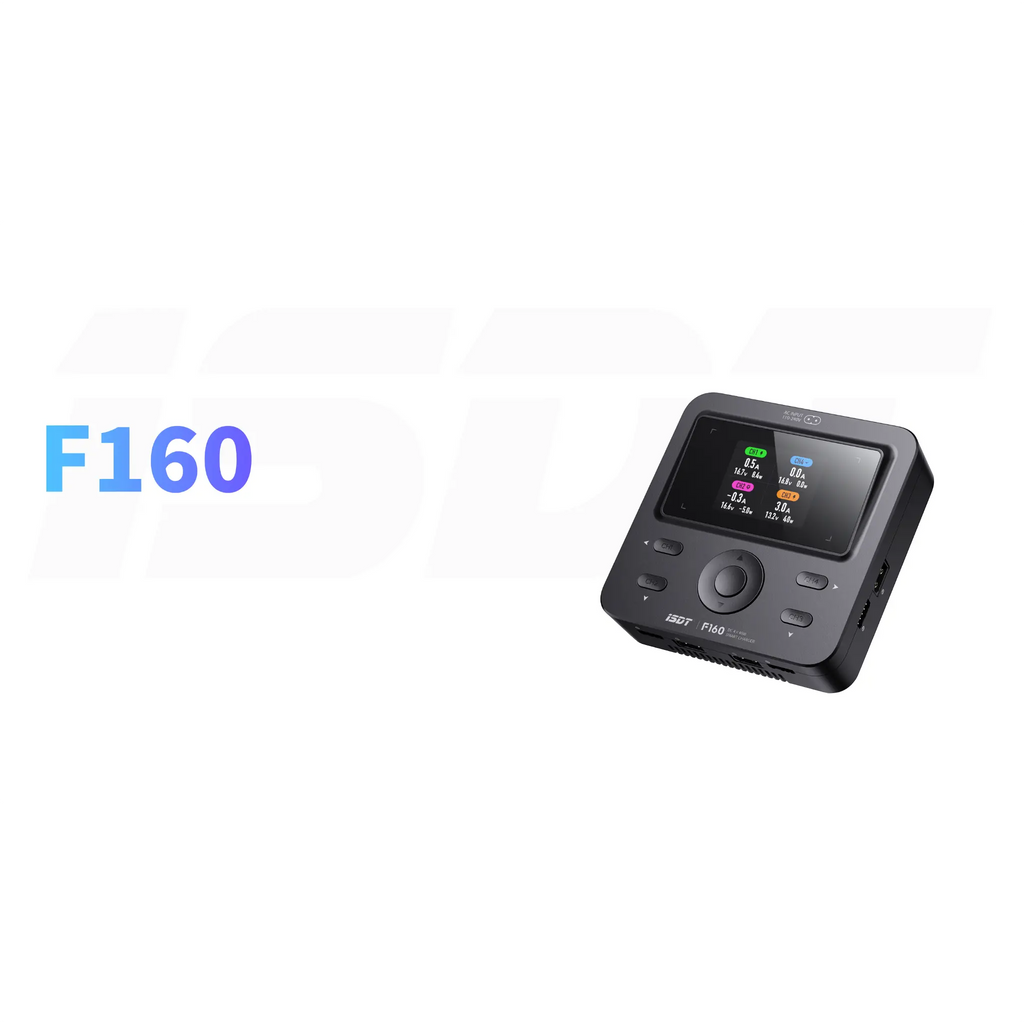

ISDT F160

ISDT F160

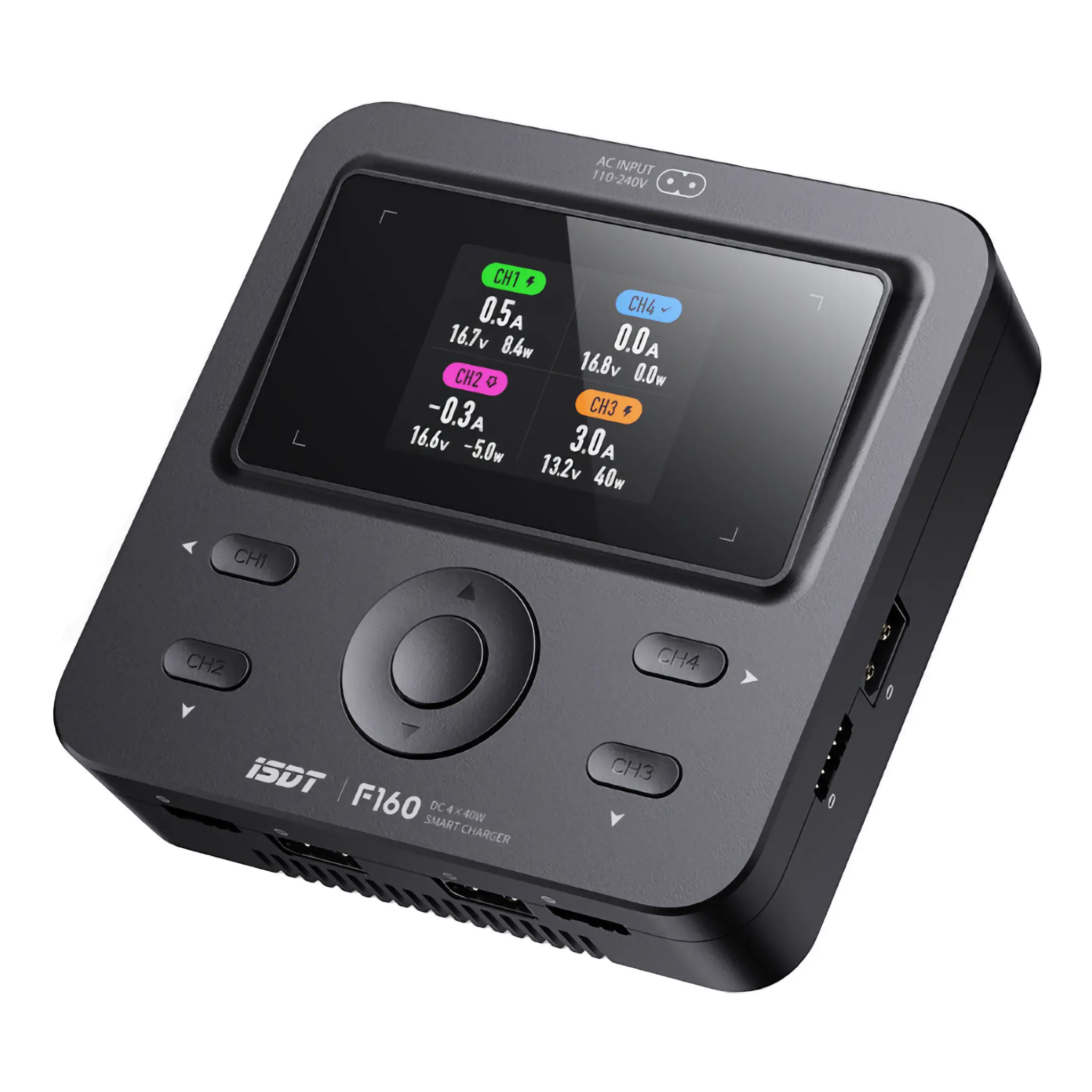

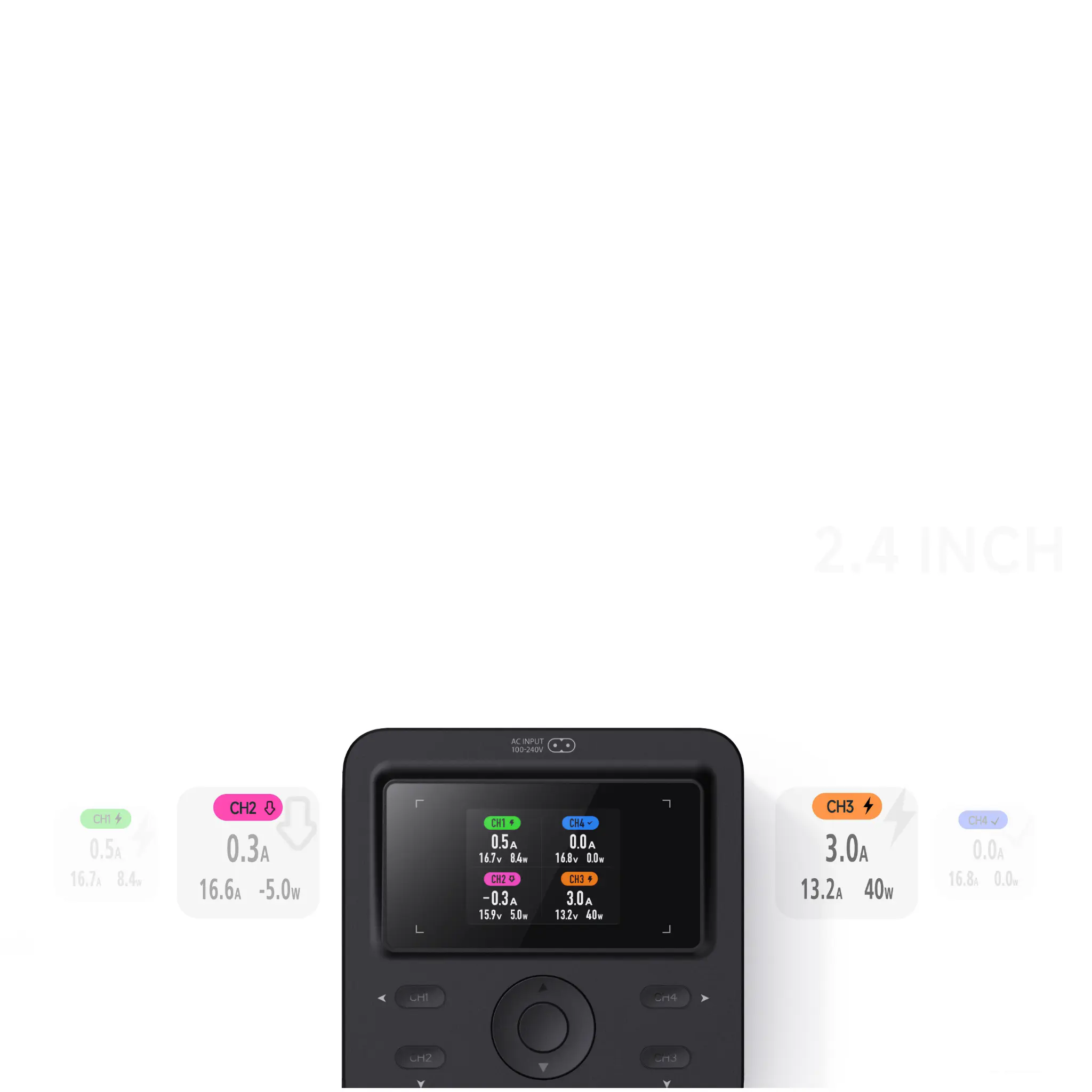

The ISDT F160 is a powerful, compact, and intelligent 4-channel smart charger designed for hobbyists and professionals who need efficiency, safety, and versatility in every charge. With up to 40W per channel and support for a wide range of battery types, the F160 delivers precision charging for all your LiPo, LiFe, Li-Ion, NiMH, NiCd, Pb, and ULiHv packs

SPECIFICATIONS

• Input Voltage: AC 100-240V
• Input Voltage Range:
• 200-240V~ 50Hz 2.5A (EU)
• 110-130V~ 60Hz 4A (US)
• Output Voltage: Channel 1: 5-18.5V
• Channels 2-4: 2.5-18.5V
• Charging Current: 0.1~5.0A x4
• Discharging Current:  0.1~1.0A x4
• Maximum Charging Power: 40W x4
• Maximum Discharging Power: 5W x4
• Supported Battery Types and Cell Counts:
• LiFe, Li-Ion, LiPo, LiHv, ULiHv 1~4S
• Pb 2~7S
• NiCd/MH 4~12S
• Balancing Current: 0.5A / Cell (Max)
• USB Output Power: 5V/2A (only when Channel 1 is idle)
• Operating Temperature: 0°C~40°C
• Storage Temperature: -20°C~60°C
• Dimensions: 130x128x41mm
• Weight: 380g
