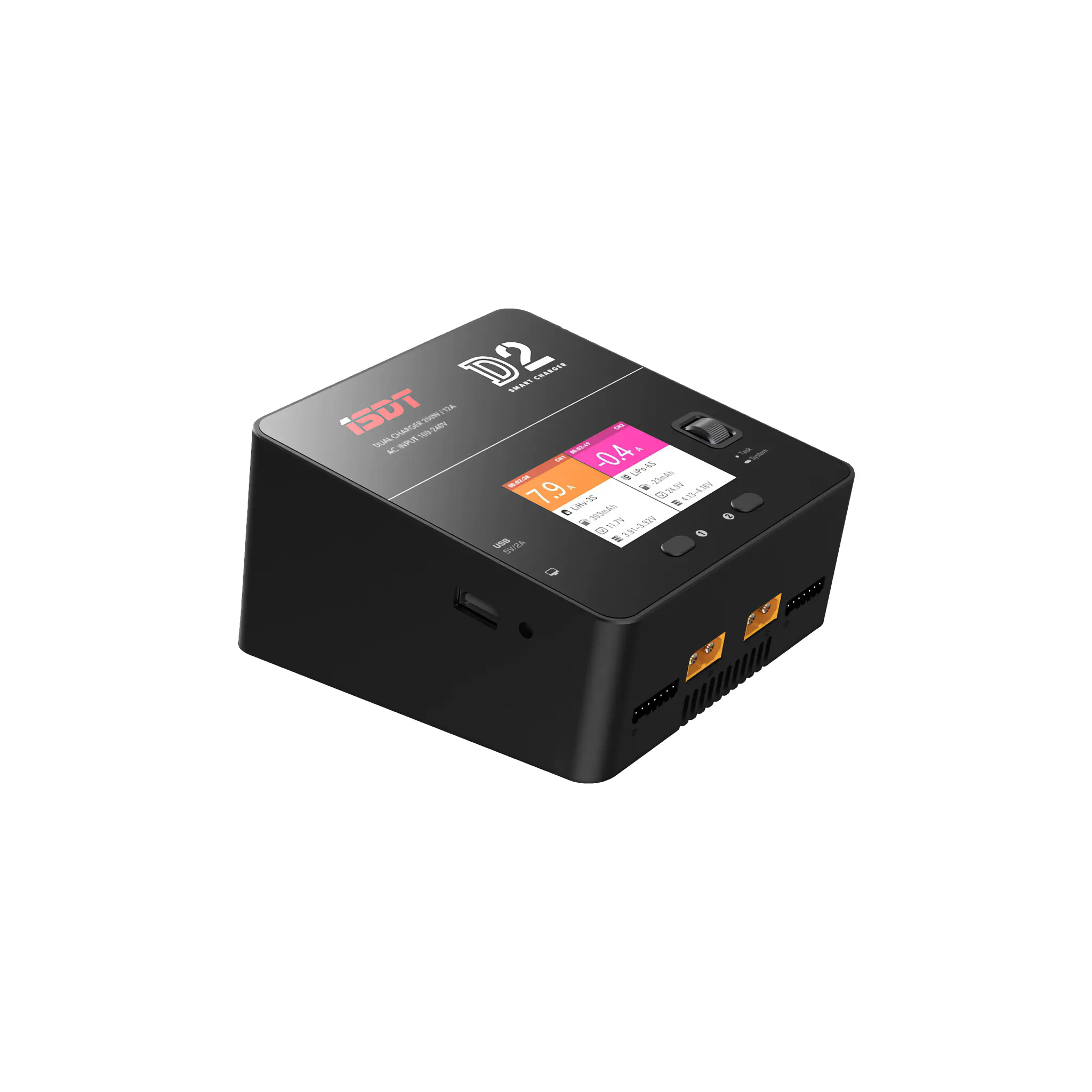

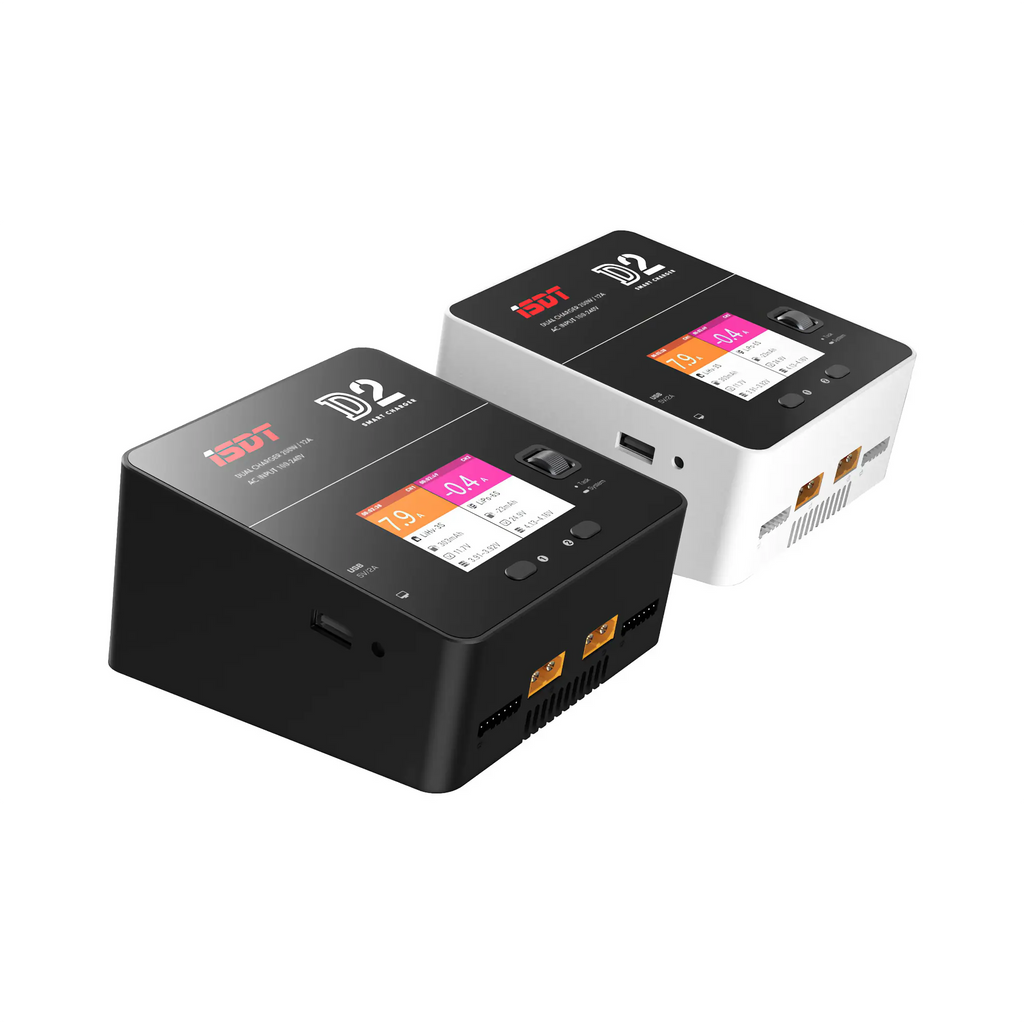

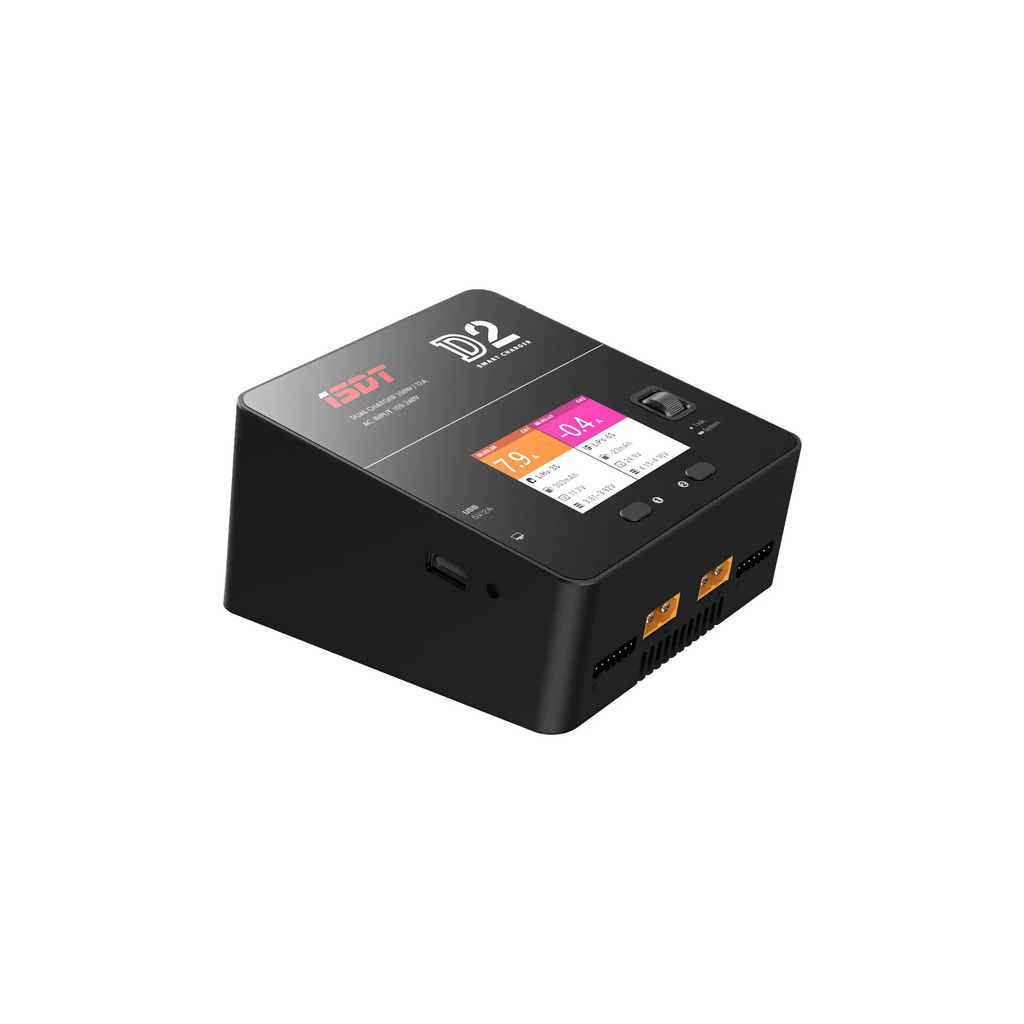

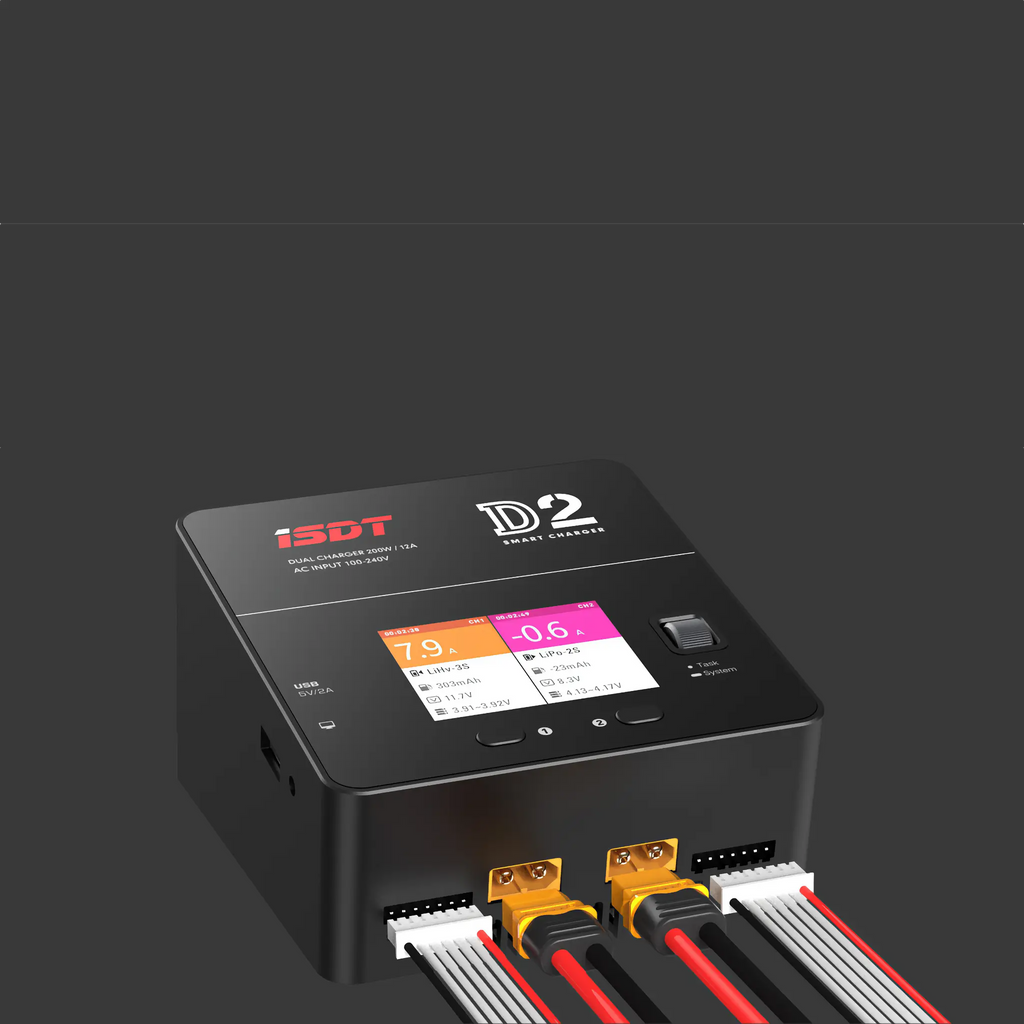

ISDT D2 Mark 2

ISDT D2 Mark 2

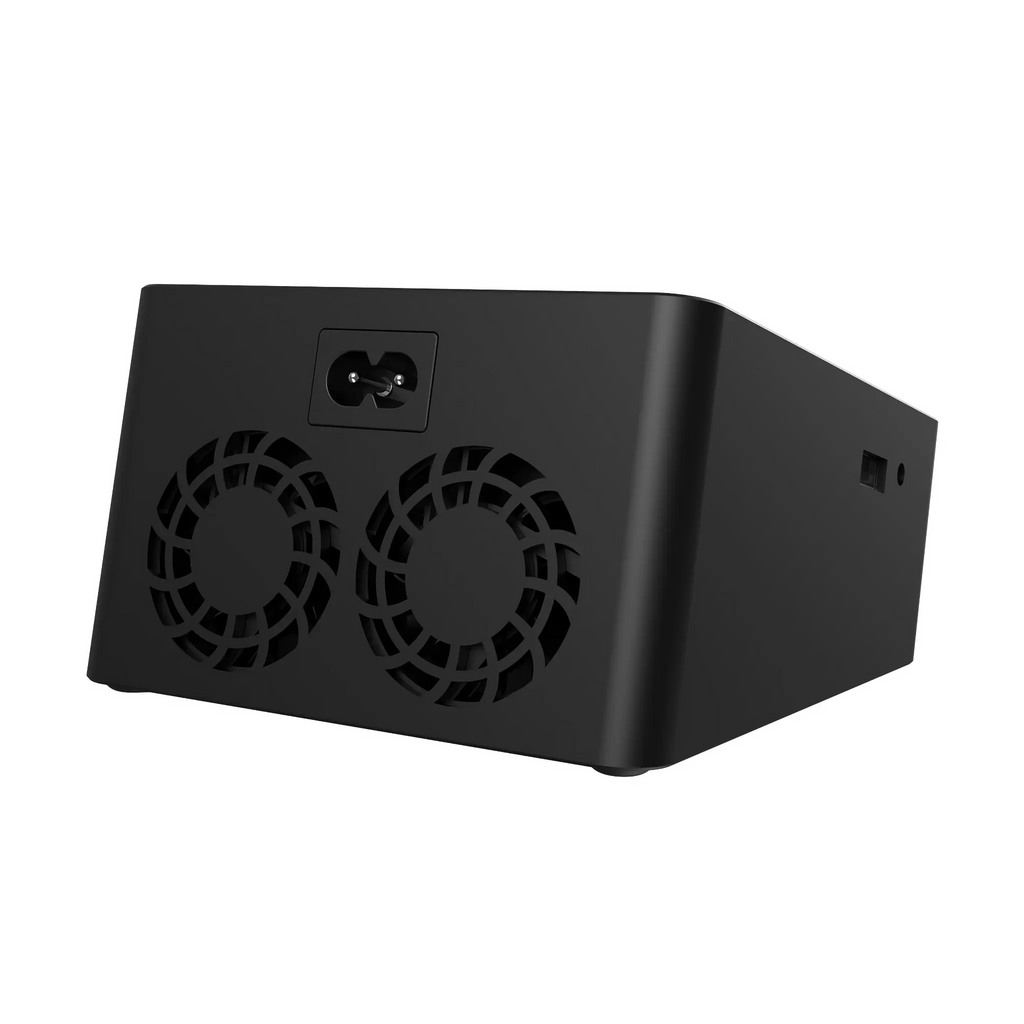

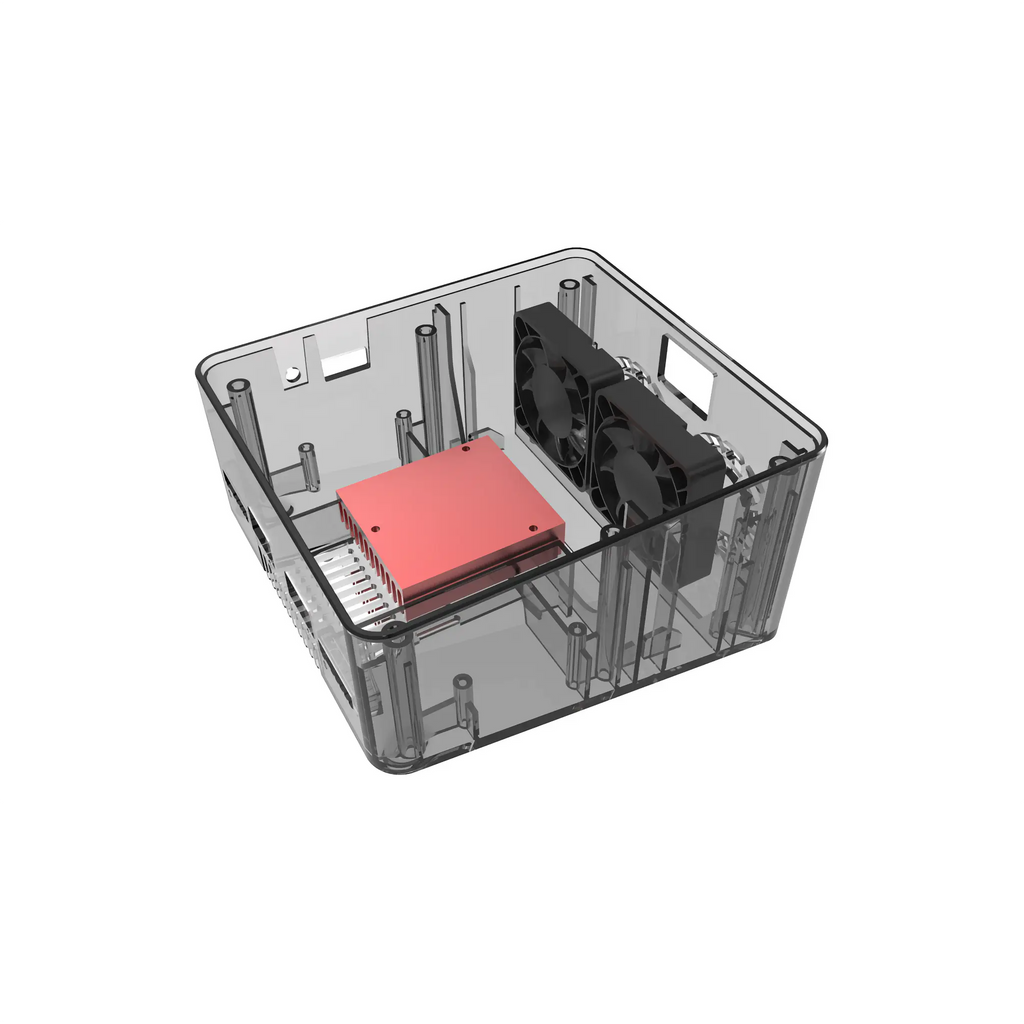

The ISDT D2 Mark 2 is a powerful dual-channel smart charger with upgraded hardware for enhanced stability and performance. Supporting multiple battery types (LiHv, LiPo, LiFe, Li-ion, NiMH, Cd, Pb), it delivers up to 200W dual output with parallel and dual-task modes. Designed with industrial-level power management, wide AC input, and built-in protections (SCP, OLP, OVP, OTP), it ensures safe and efficient charging. Features include DC power output (CH1), dual fan cooling, USB 5V/2A output, and multi-language support in a compact, user-friendly design.

SPECIFICATIONS

• Input Voltage: AC 100-240V
• Charge Current: 0.2-12.0A x 2
• Discharge Current: 0.1-1.5A x 2
• Max Charge Capacity: 200W
• Max Discharge Capacity: 15W x 2
• Balancing Current: 1.5A/cell x 2
• Balance Cells: 2-6S x 2
• USB Port: 5V/2A
• Supported Batt. Type: LiFe/Lilon/LiPo/LiHv (1-6S) NiMH/Cd(1-16S) Pb(1-12S)
• Display: 2.4" 320x240 IPS LCD
• Operating Temperature: 0-40°C
• Storage Temperature: -20-60°C
• Dimensions: 120x108x70 mm
• Weight: 558g
