ISDT BG-8S

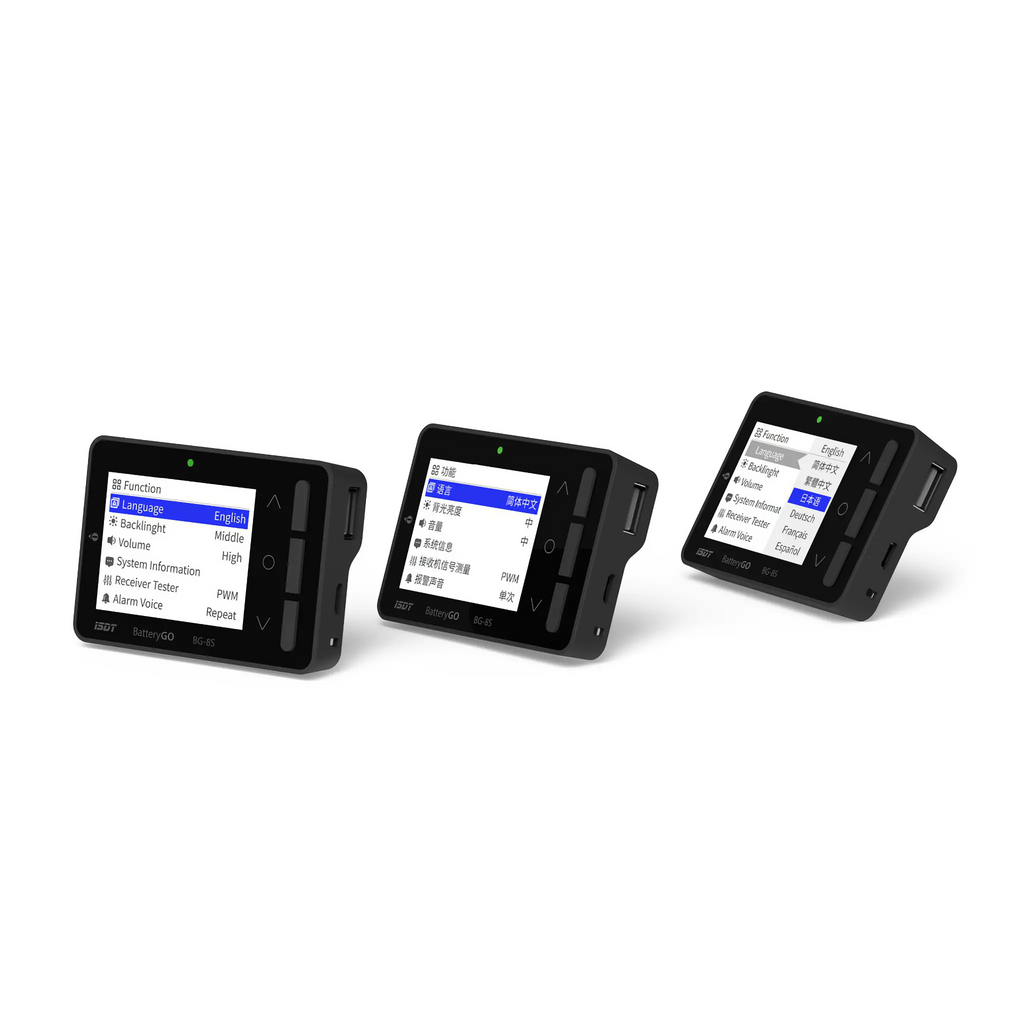

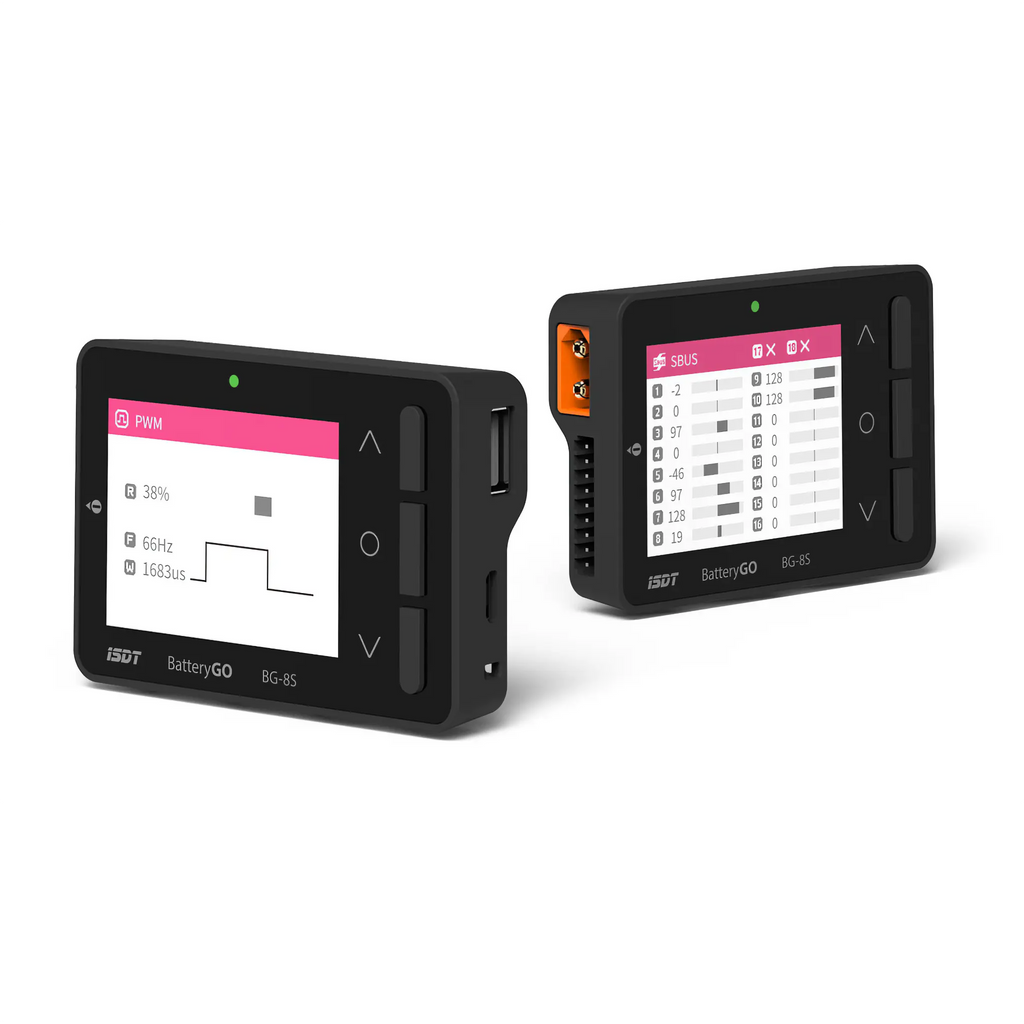

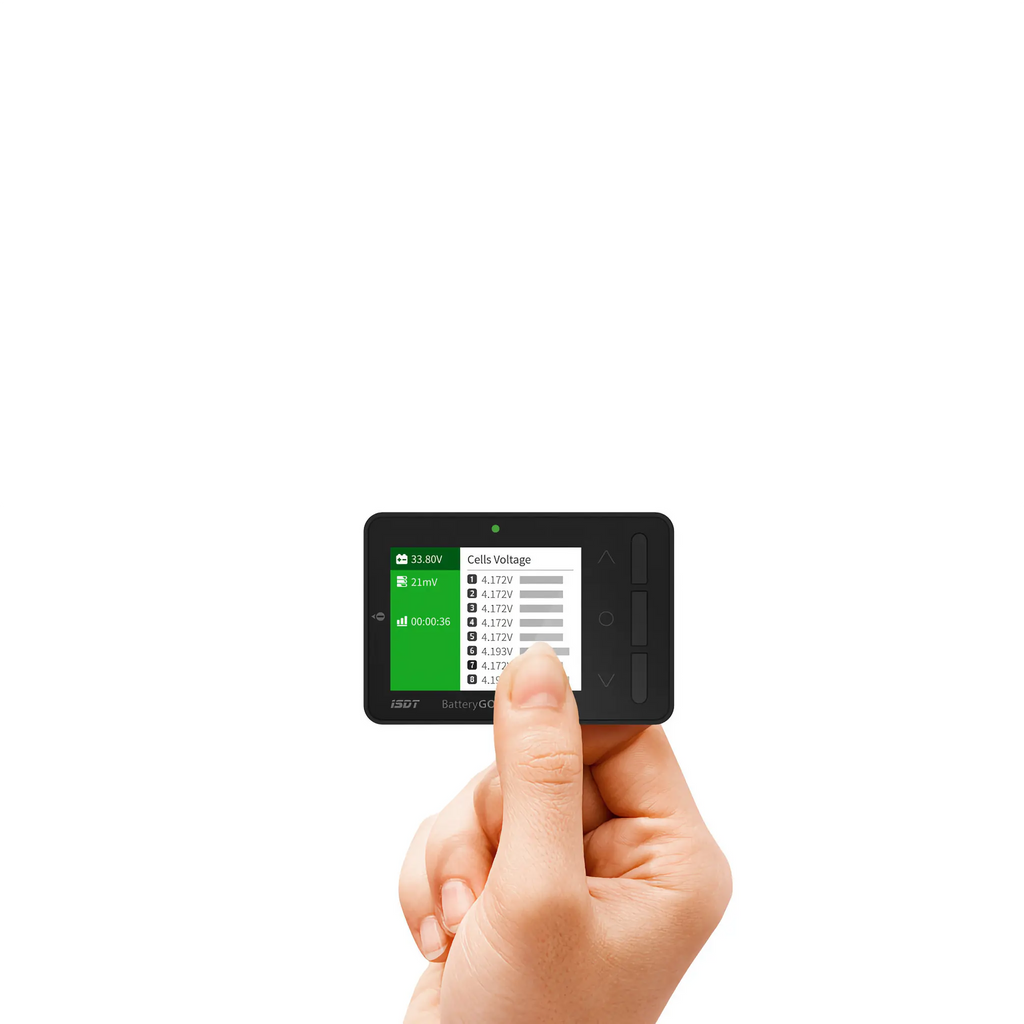

ISDT BG-8S Smart Battery Checker

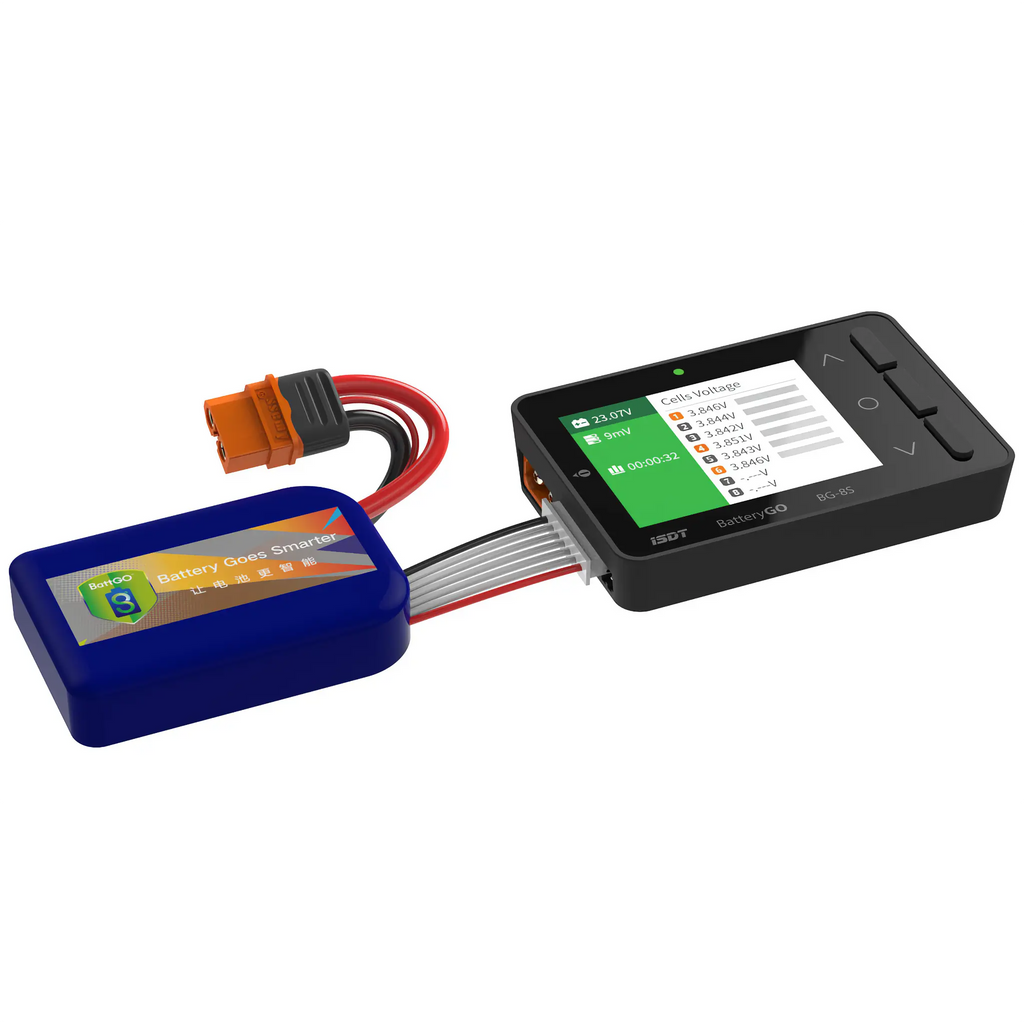

The ISDT BG-8S is a compact and powerful smart battery checker designed for RC enthusiasts and professionals. Supporting 1–8S LiPo, LiHv, LiFe, LiIon, and 1–10S NiMH/Cd batteries, it provides highly accurate voltage measurements (±0.005V) and precise cell balancing for safe and efficient battery maintenance. Featuring a vibrant 2.4” IPS LCD display, it allows real-time monitoring of battery status, history, and usage data. The BG-8S also supports smart battery functions, including charging and discharging settings, and offers QC2.0/3.0 USB fast charging (up to 12V/2A) for added convenience. Lightweight at just 59g, it’s the perfect tool for checking, balancing, and maintaining your batteries anywhere you go.

SPECIFICATIONS

• Working voltage: 5.0V-36V
• Input voltage 1S: 0.8V-15V
• Input voltage 2-8S: 0.8V-4.8V
• Battery cells: 1-8S
• Voltage measurement accuracy: ±0.005V @ 4.2V
• Balancing cells accuracy: < 0.005V
• Support USB charging: QC 2.0 / 3.0, BC1.2, Maximum output 12V/2A
• Support smart battery: Charging and discharging setting, read battery info and usage history.
• Support Battery Types and cell count:
• LiHv 1-8S
• LiPo 1-8S
• LiFe 1-8S
• Lilon 1-8S
• NiMH/Cd 1-10S
• Display: 2.4” 320×240 260,000 color IPS LCD
• Dimension: 80 x 55 x 19 mm
• Weight: 59g
• Operating Temperature: 0-40°C
• Working Humidity: 10%-90%RH (noncondensing)
• Storage Temperature: -20-60°C
• Storage Humidity: 5%-90%RH (noncondensing)
