ISDT B80
€779,00
Taxes included.

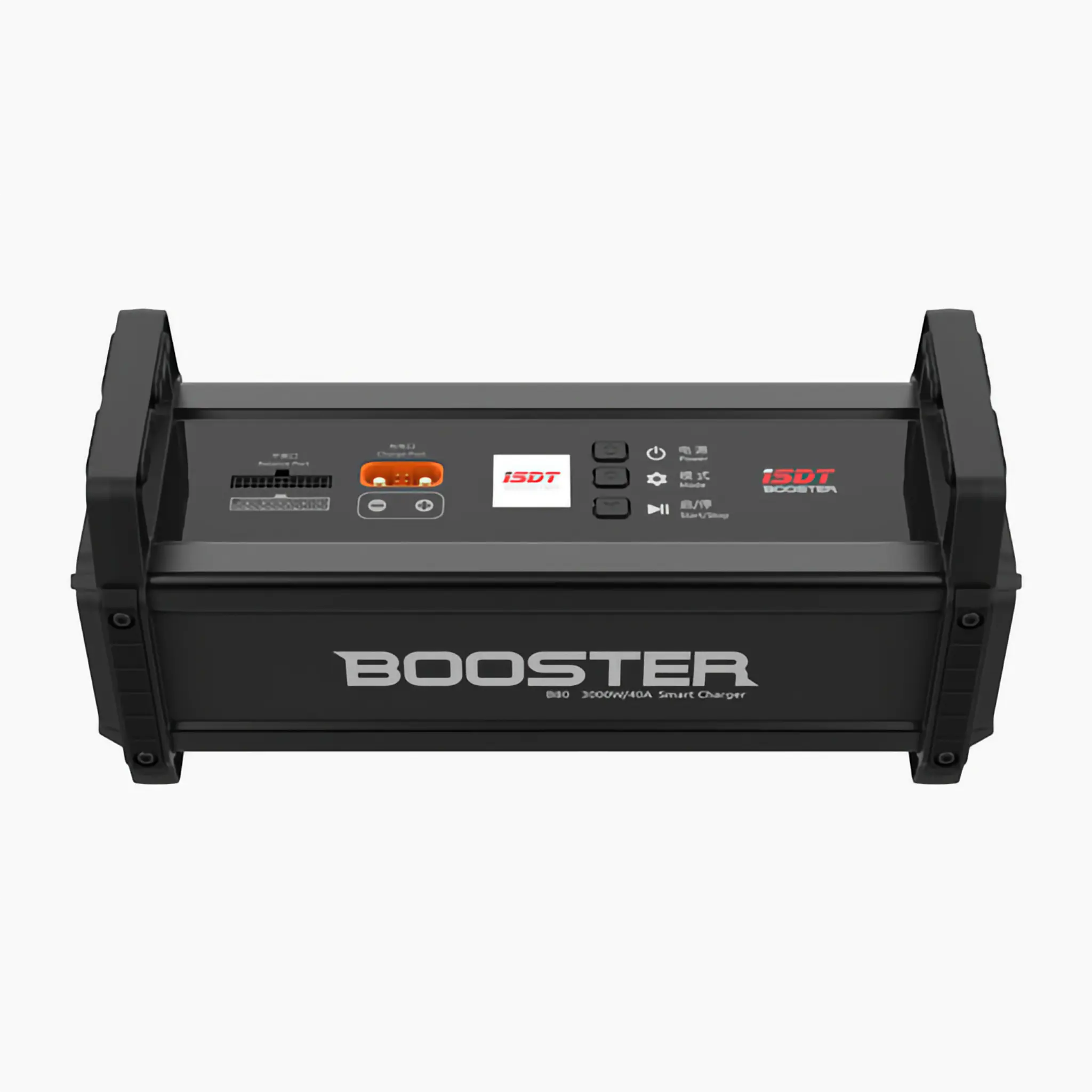

ISDT B80

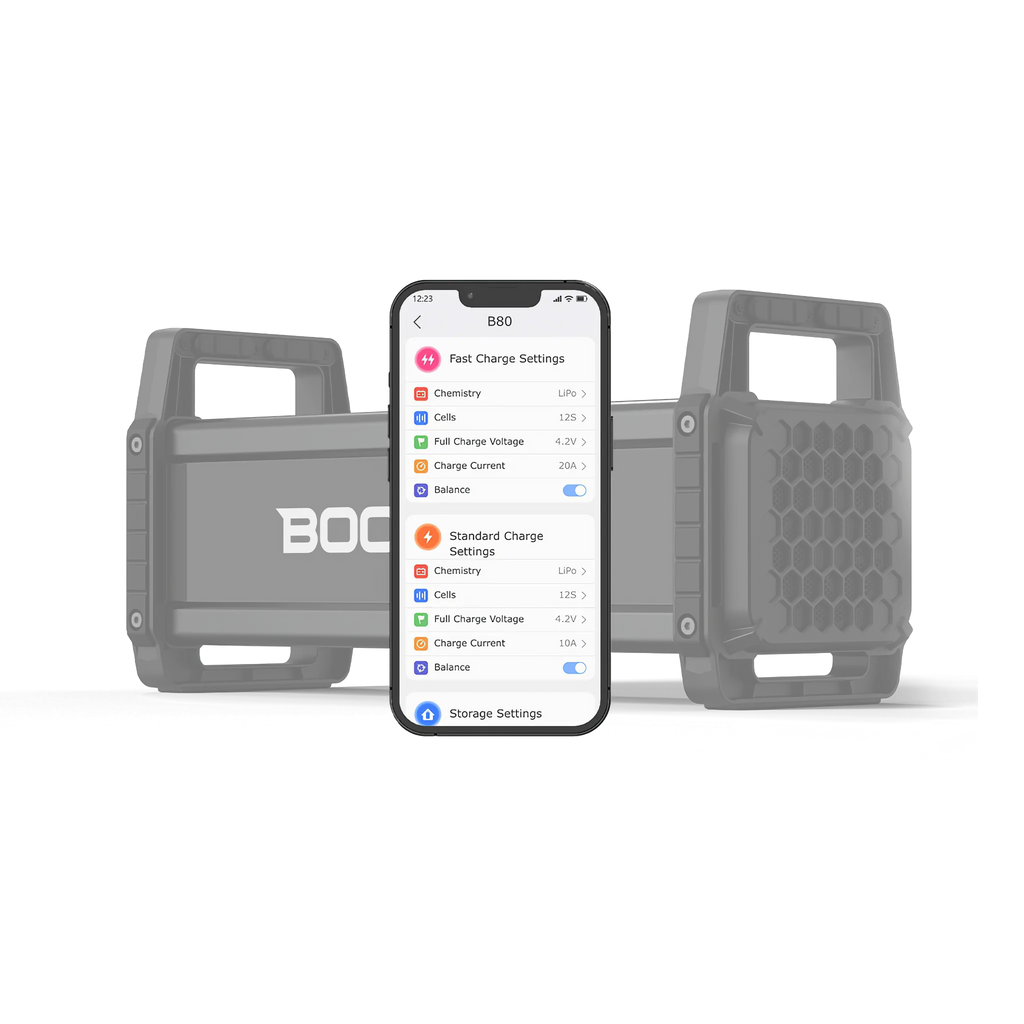

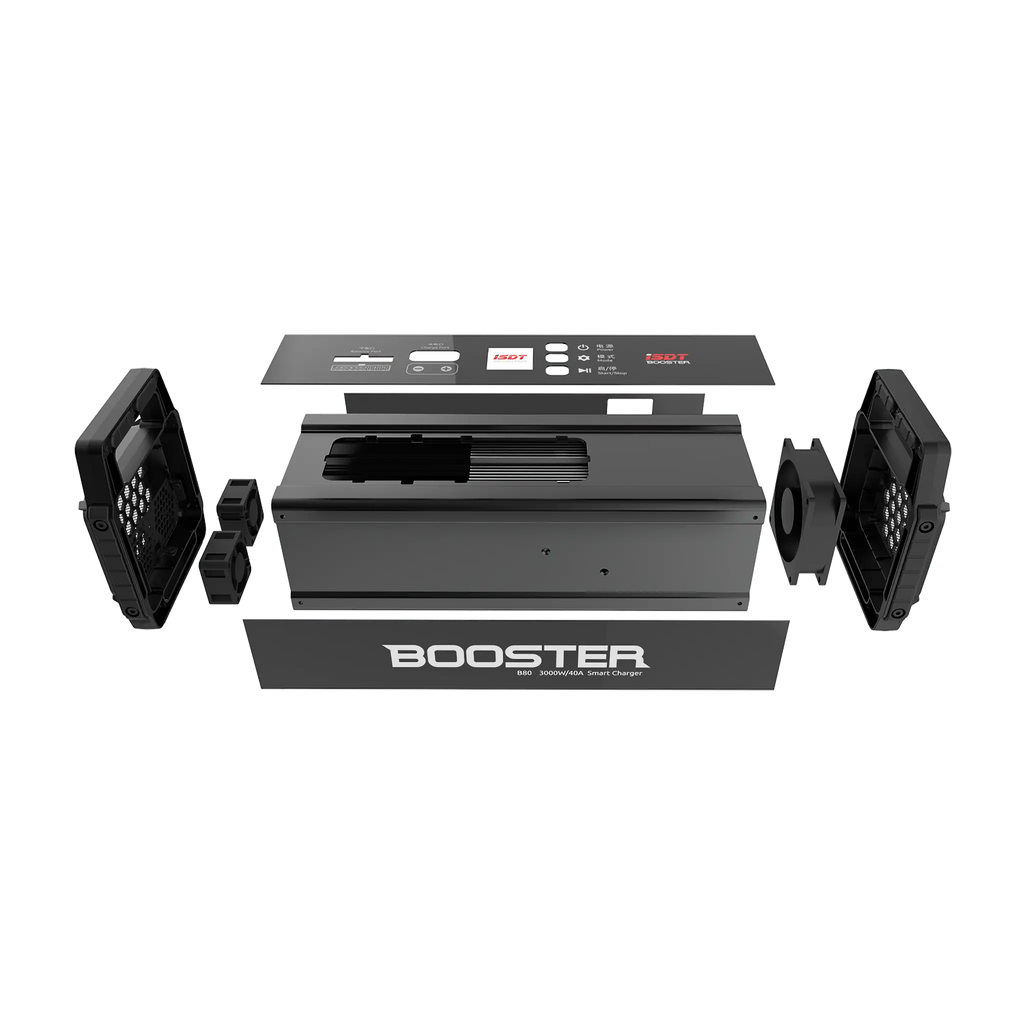

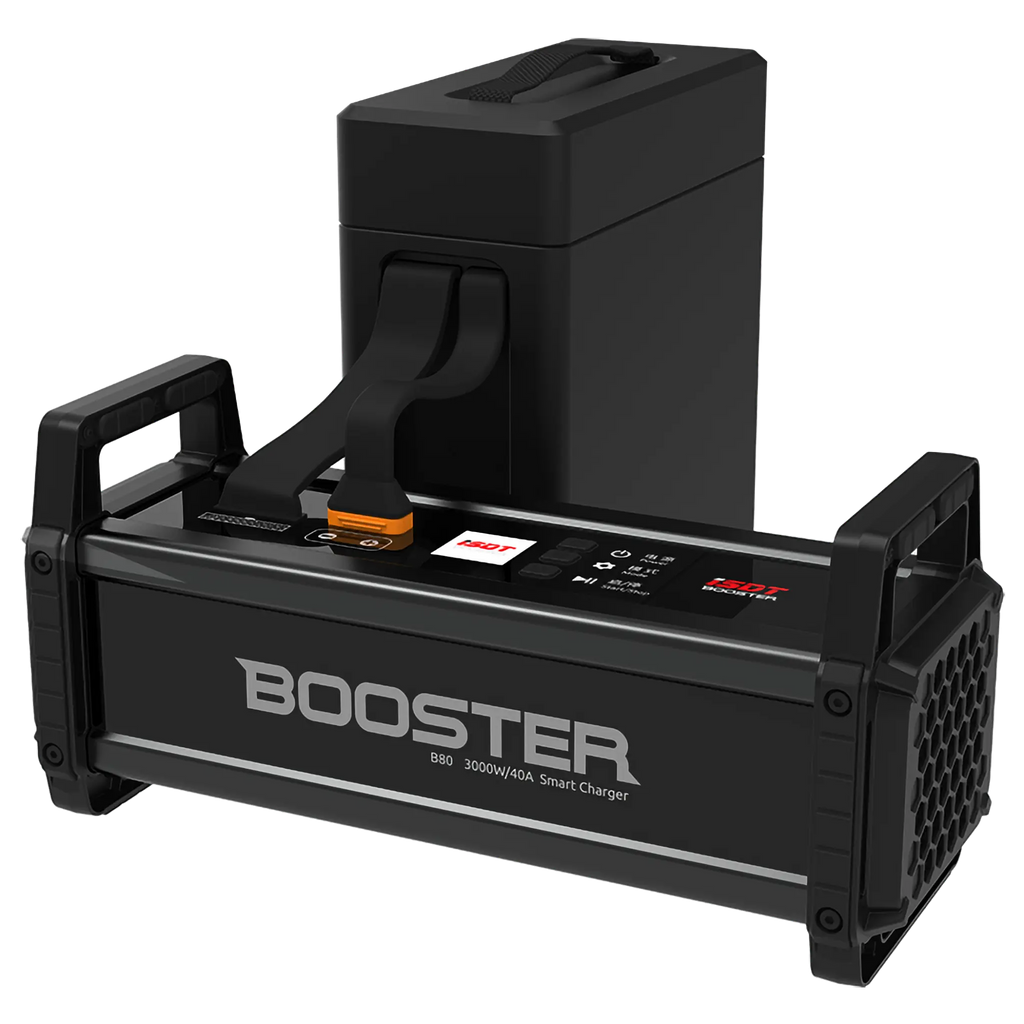

The ISDT B80 is a high-performance smart charger delivering up to 3000W, 80V, and 40A for powerful and efficient charging. Designed for large batteries, it supports 6–22S LiFe and up to 18S LiPo packs with a 22S balance port. Featuring wireless control via the ISD Link App, OTA updates, and a durable aluminum alloy body with advanced cooling, the B80 combines strength, adaptability, and reliability for professional-grade charging.
SPECIFICATIONS
- Input voltage range: AC 100~240V
- Output voltage range: DC 20~80V
- Maximum input current: AC 16A
- Maximum charging power:
- 3000W (@220V AC)
- 1500W (@110V AC)
- 1400W (@100V AC)
- Maximum discharge power: 200W
- Supported battery types and cell count:
- LiFe (8~22S)
- LiPo (6~18S)
- LiHv (6~18S)
- ULiHv (6~18S)
- Charging current: 1.0~40.0A (Max)
- Discharging current: 0.5~5.0A (Max)
- Balance current: 2A/Cell Max
- Abnormal voltage alarm: Support
- Incorrect cell count setting alarm: Support
- BattAir: Support
- Working temperature: 0~40°C
- Storage temperature: -20~60°C
- Dimension: 356 x 136.8 x 164.1 mm
- Weight: About 3973g
