FLYFISHRC M10QMC GPS Module

FLYFISHRC M10QMC GPS Module

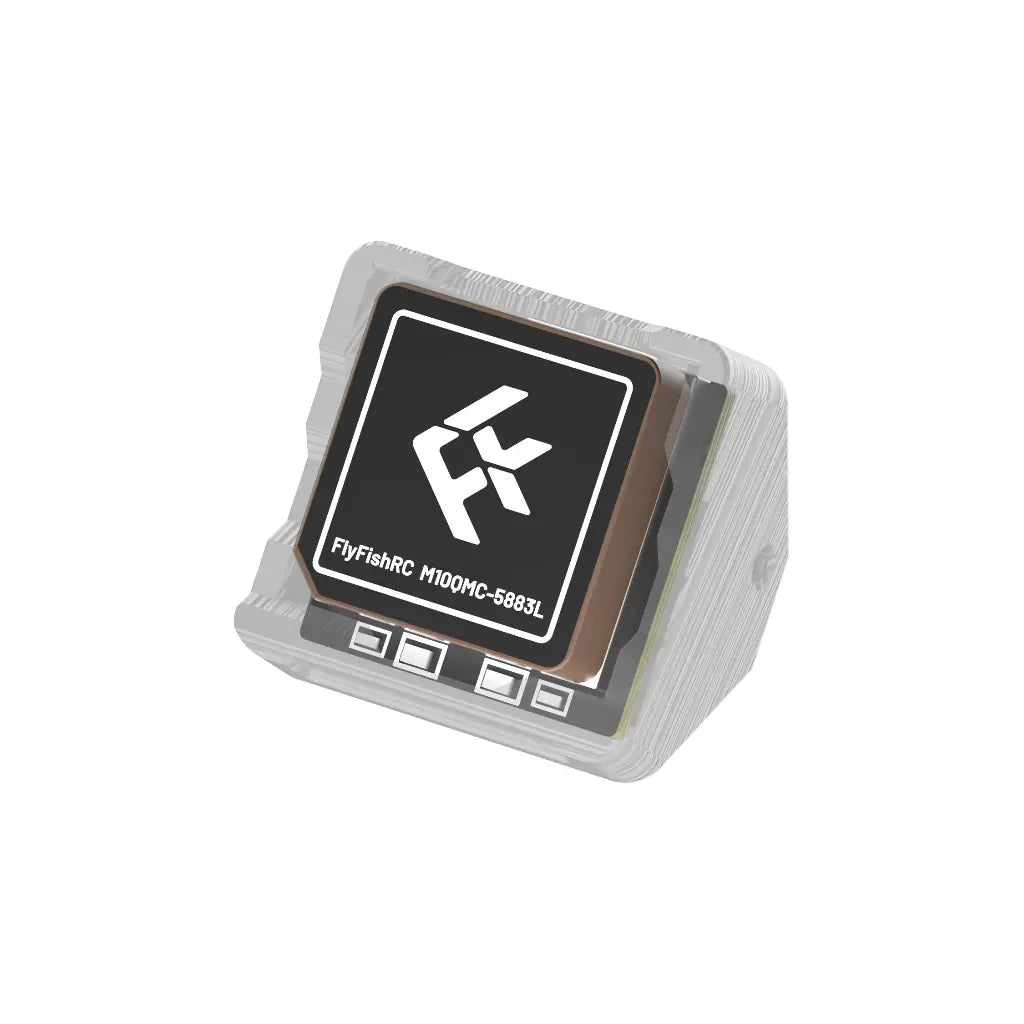

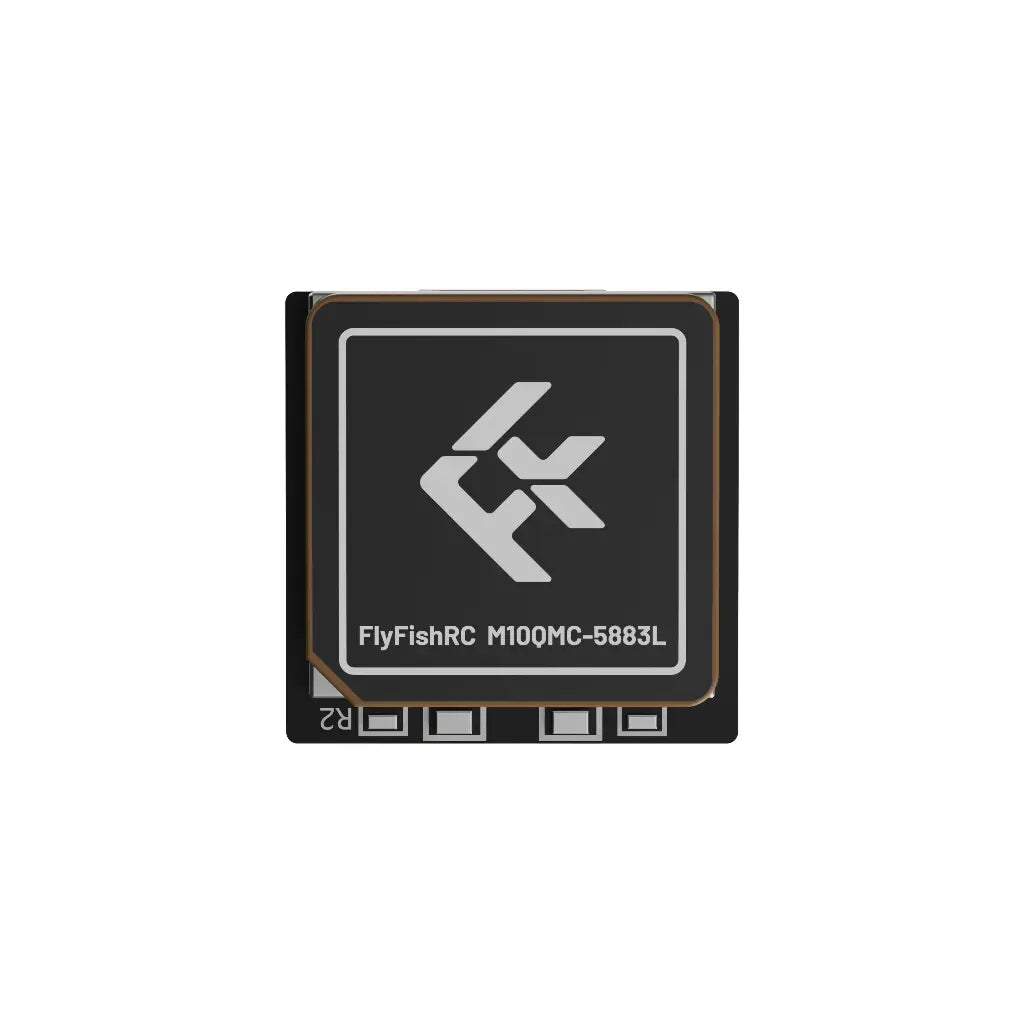

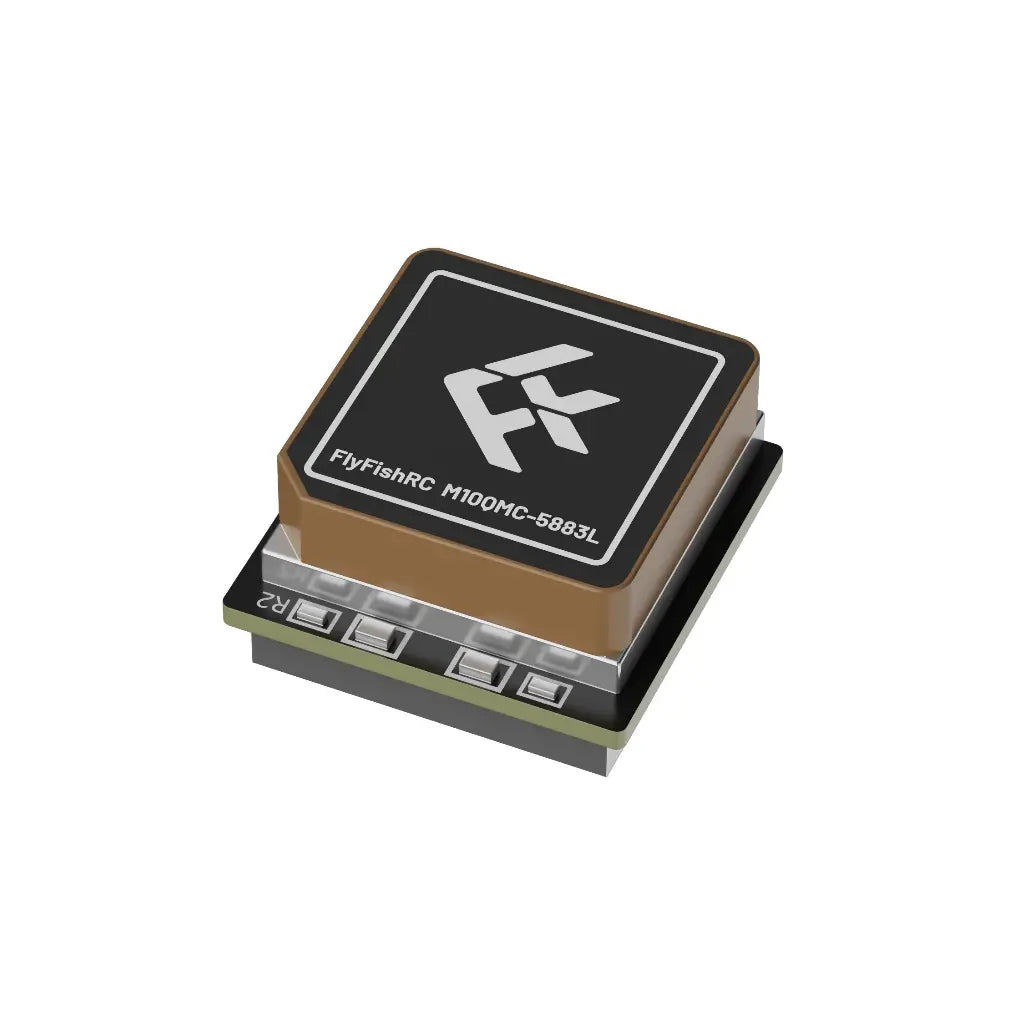

The FlyFishRC M10QMC GPS Module delivers fast, stable, and highly accurate positioning for FPV drones, multi-rotors, and fixed-wing models. It features a superior 18x18mm RHCP ceramic patch antenna for excellent satellite reception and a built-in QMC5883L high-precision magnetometer for reliable azimuth pointing.
Engineered for performance, the M10QMC boasts a fast 10Hz refresh rate, rapid Hot Start in under 2s, and a tracking sensitivity of -162dBm. Its compact design (20x20x11mm, 8.8g) and SH1.0-6Pin terminal ensure simple, solder-free installation, making it the ideal upgrade for dependable navigation.

Specifications

Frequencies: 72 channel
Refresh Rate: 10 Hz
Compass module: QMC5883L
Baud Rate：4800bps-115200bps (Default - 9600bps)
Sensitivity: Tracking: -162dBm， Capture: -160dBm，Cold Start：-148dBm
Accuracy:  Horizontal <2.5m average), SBAS < 2.0m average, Timepulse: RMS 30 ns
Cold start: <24s
Hot start: <2s
Maximum height: 50000m
Maximum speed: 500 m/s
Speed accuracy: 0.05 m/s
Maximum acceleration: ≦ 4G
Input Voltage: 3.3V-5V，current 25mA

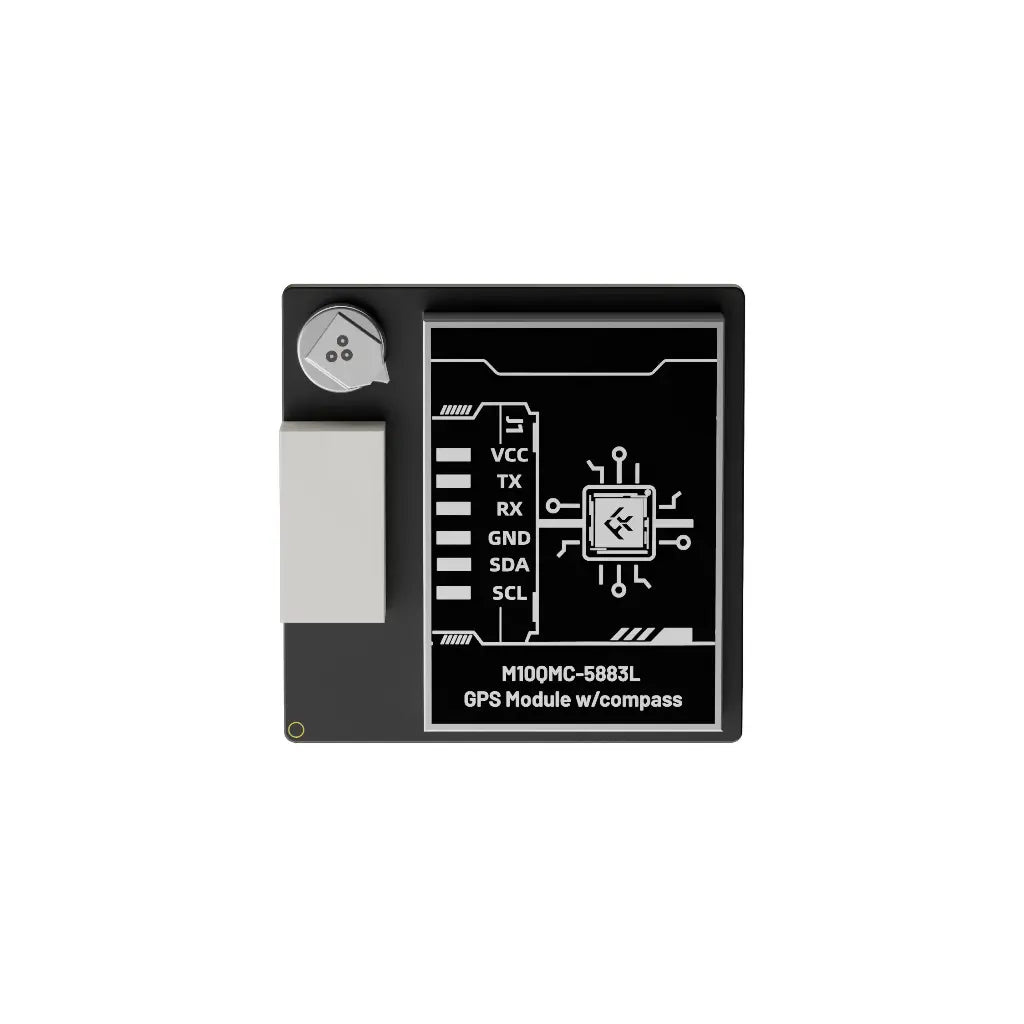

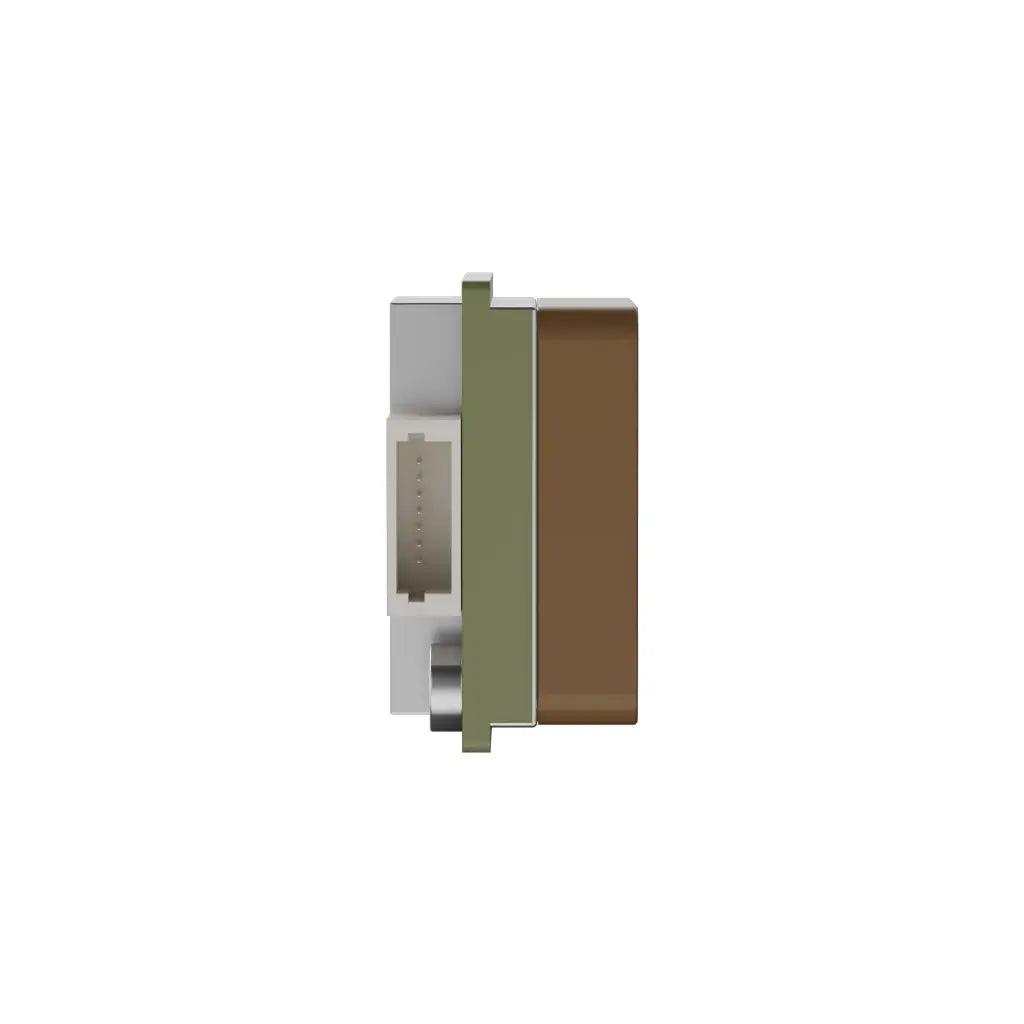

Output Connector: SH1.0-6P
Weight: 8.8g
GPS patch antenna size: 18 x 18 mm

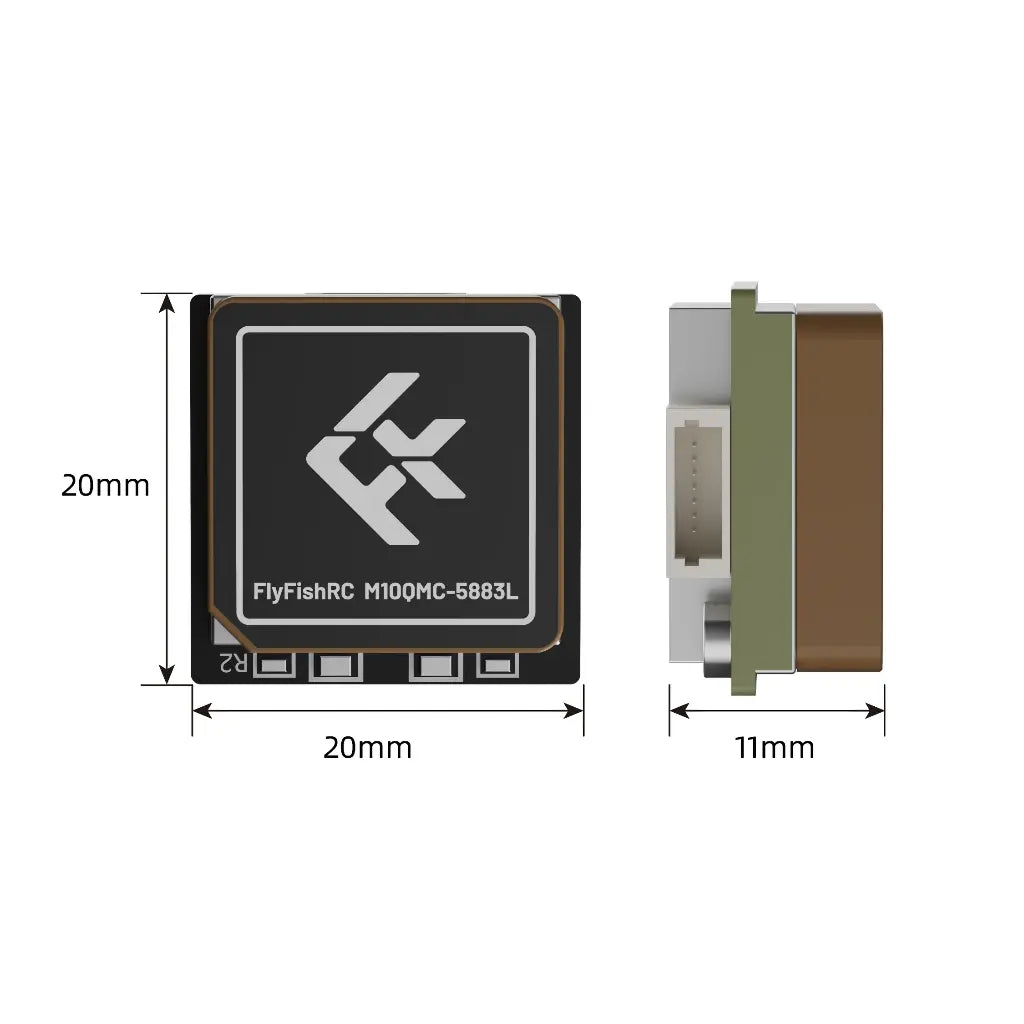

Total dimensions：20 x 20 x 11 mm
