FLYFISHRC M10 Mini GPS Module

FLYFISHRC M10 Mini GPS Module

The FLYFISHRC M10 Mini GPS Module delivers high-speed, reliable connectivity in an ultra-compact design.Featuring a 12x12mm RHCP ceramic patch antenna, the M10 ensures excellent satellite reception and high stability for your FPV drone or micro build. With a lightning-fast Hot Start time of just 1−3s and impressive tracking sensitivity of -167dBm, this module provides precise speed accuracy of 0.05m/s and supports a maximum altitude of 50,000m.Weighing only 2.4g, the M10 is the perfect lightweight solution for powerful performance.

Specifications

Speed Accuracy: 0.05m/s
Cold Start: 30 s
Hot Start: 1-3 s
Tracking Sensitivity: -167dBm
Input Voltage: 3.3~5.5V (typical value 5V)
Maximum Altitude: 50000m
Maximum Speed: 500m/s
Maximum Acceleration: ≤4G
Baud Rate: 4800-115200bps (recommended 115200bps)

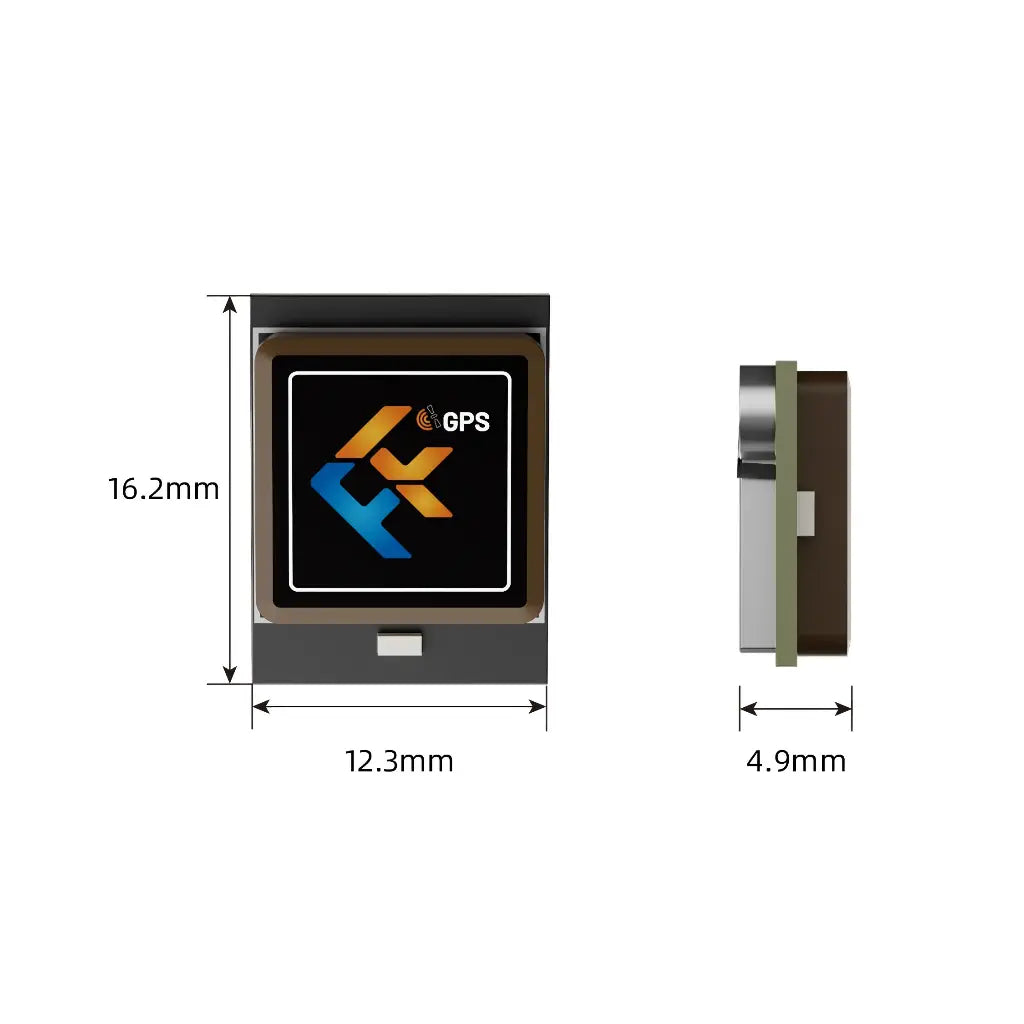

GPS Module Size: L16.2x W12.3x H4.9mm
GPS Ceramic Size: 12*12mm
Weight: 2.4g (±0.5g)
